Tried to include the prices I paid for everything with links!

Also included, towards the bottom, are some alternate part ideas and videos I found helpful along the way.
Disclosure: This page does not currently contain affiliate links, but may in the future. Affiliate links will have this clear indicator: (affiliate)
Short Breakdown of my 2025 Kilowatt build and then a detailed breakdown of my 2023 build below::

Kilowatt Keyboard Breakdown:

Pouring silicone mold into gh60 case for sound dampening

Currently, I’m using the Tofu 60 Redux (e-coating Orange).This case is much less deep than the aluminum GH60 from AliExpress that I previously used. This means a lot less room for sound dampening material. In my current build, I am just using the included foam that comes with the tofu redux.

To add a little custom flair to my keyboard case, I photoshopped and printed the Kilowatt case logo onto some acrylic sticker paper, for the front and back of the case.

Still using the same CableMod Pro Coiled Keyboard Cable (Midnight Black) .

The key caps are PBTFans white On black simple icon base set. Really enjoy how they feel and sound. Literally not a single complaint about these keycaps.

Recently, I swapped out the stock steel plate for a Wooting PC switch plate in black, which is made of plastic. It is much quieter than the steel plate and much softer on the fingers when bottoming out a keypress.

Also replaced my previously used o-ring with a Wooting friction fit pad hich also reduces much of the sound this keyboard makes.

Swapped out the original Jade switches for Gateron Magnetic Jade Pros. The Jade Pros have a bit of a bassier tone which I enjoyed more. The original Magnetic Jades, when lubed, ound very similar to unlubed Jade Pros. When you add lube to the Jade Pros they get a bit quieter and make much less high pitched noise. Overall I would say there is only a slight difference in sound but it makes about a 5-10% difference, which was enough for me to justify the poor financial decision of upgrading.

One day, I may try another silicone pour in my Tofu redux. But for now I am satisfied with this build, as it was time to switch things up and try something different after using the same build for a few years.

Killowatt Keyboard Photo Gallery (2025)

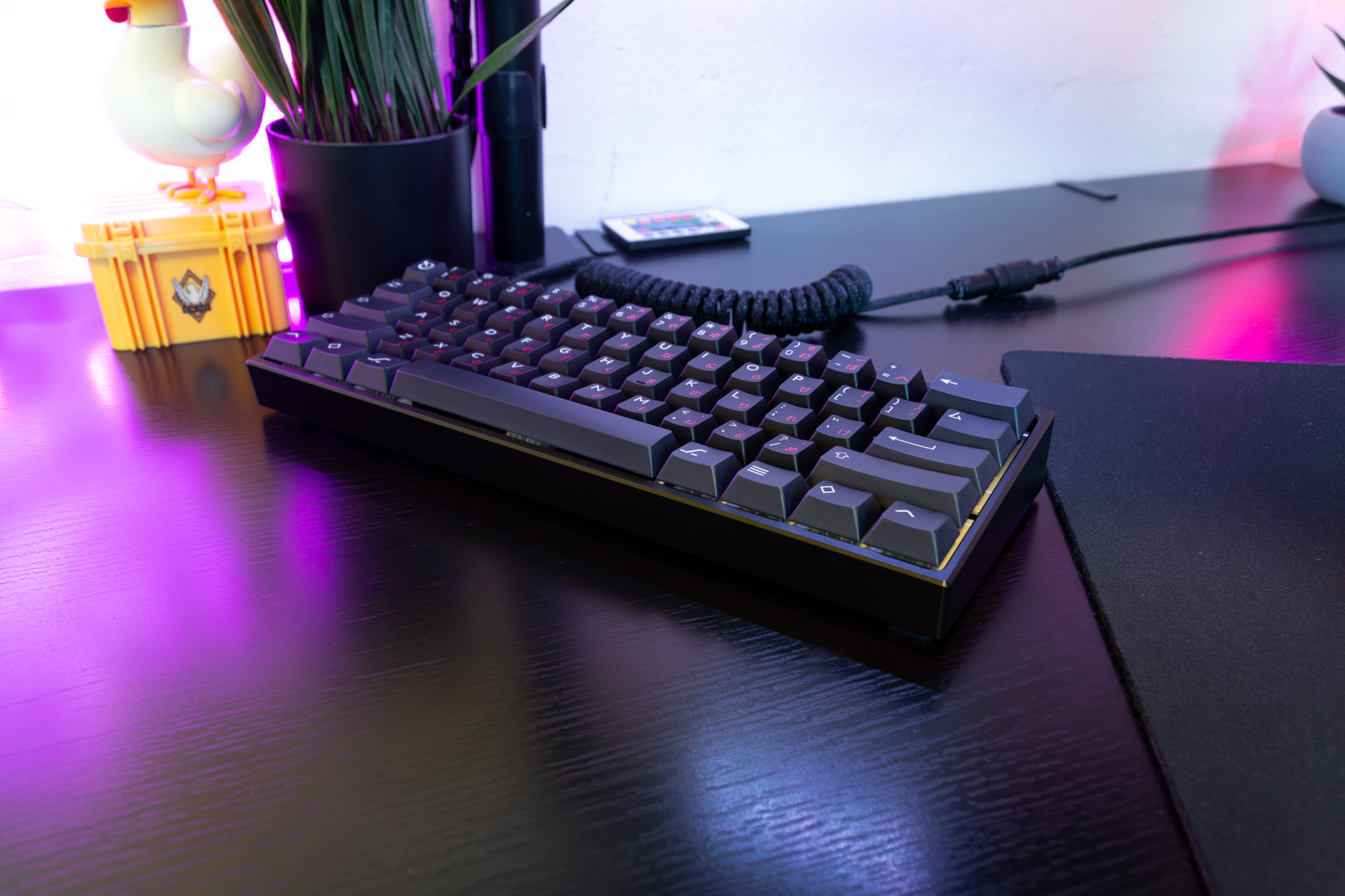

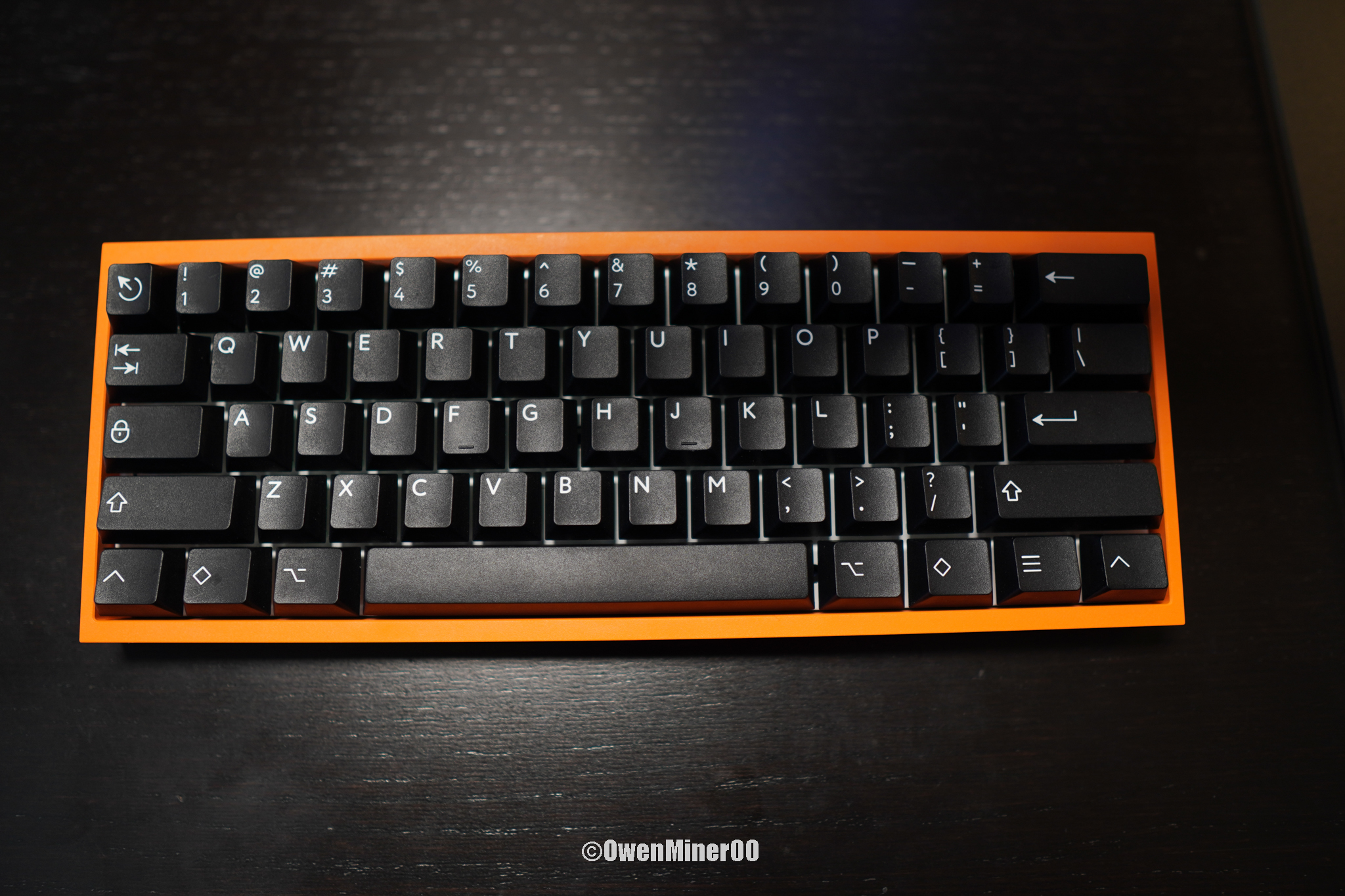

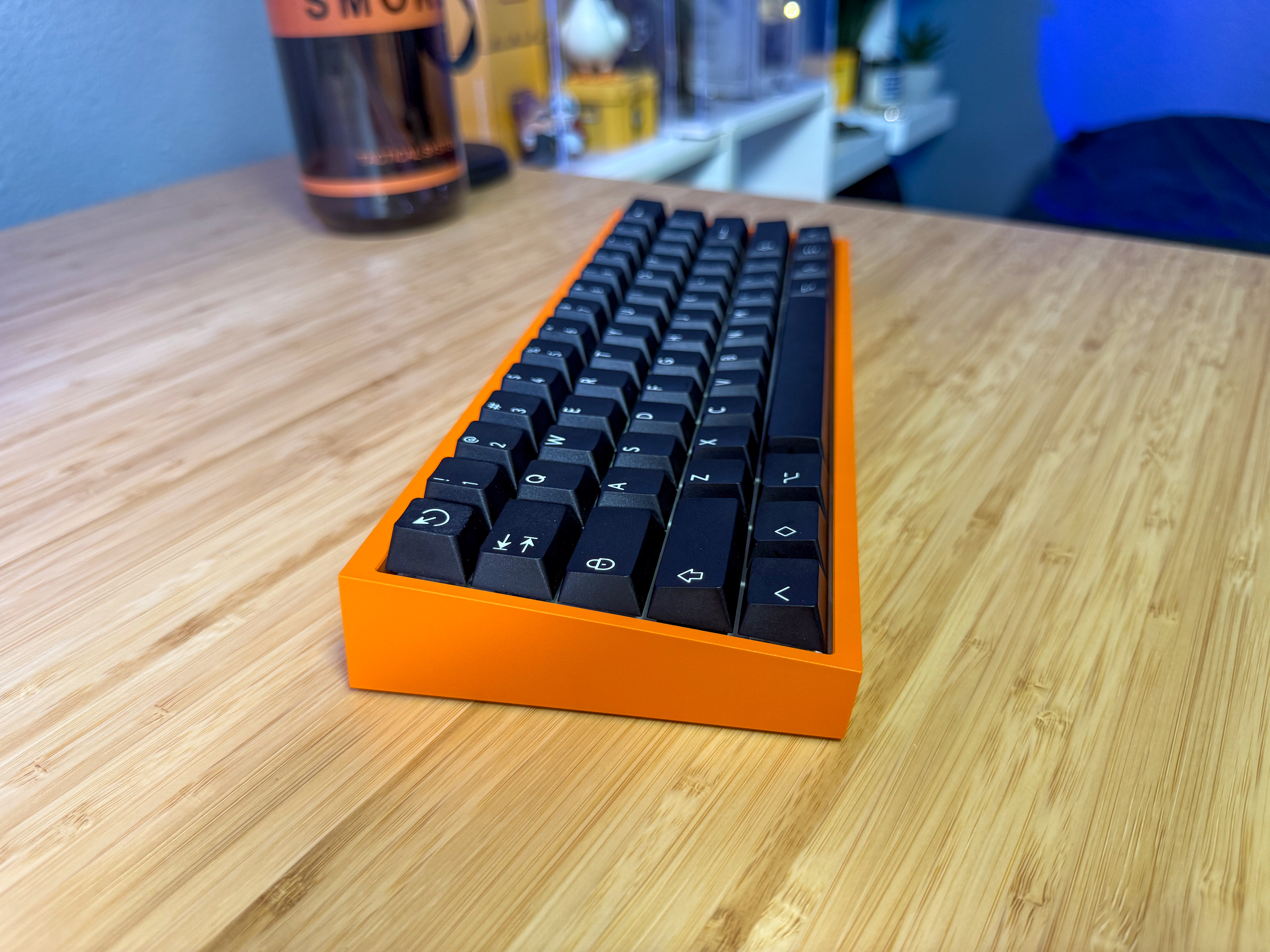

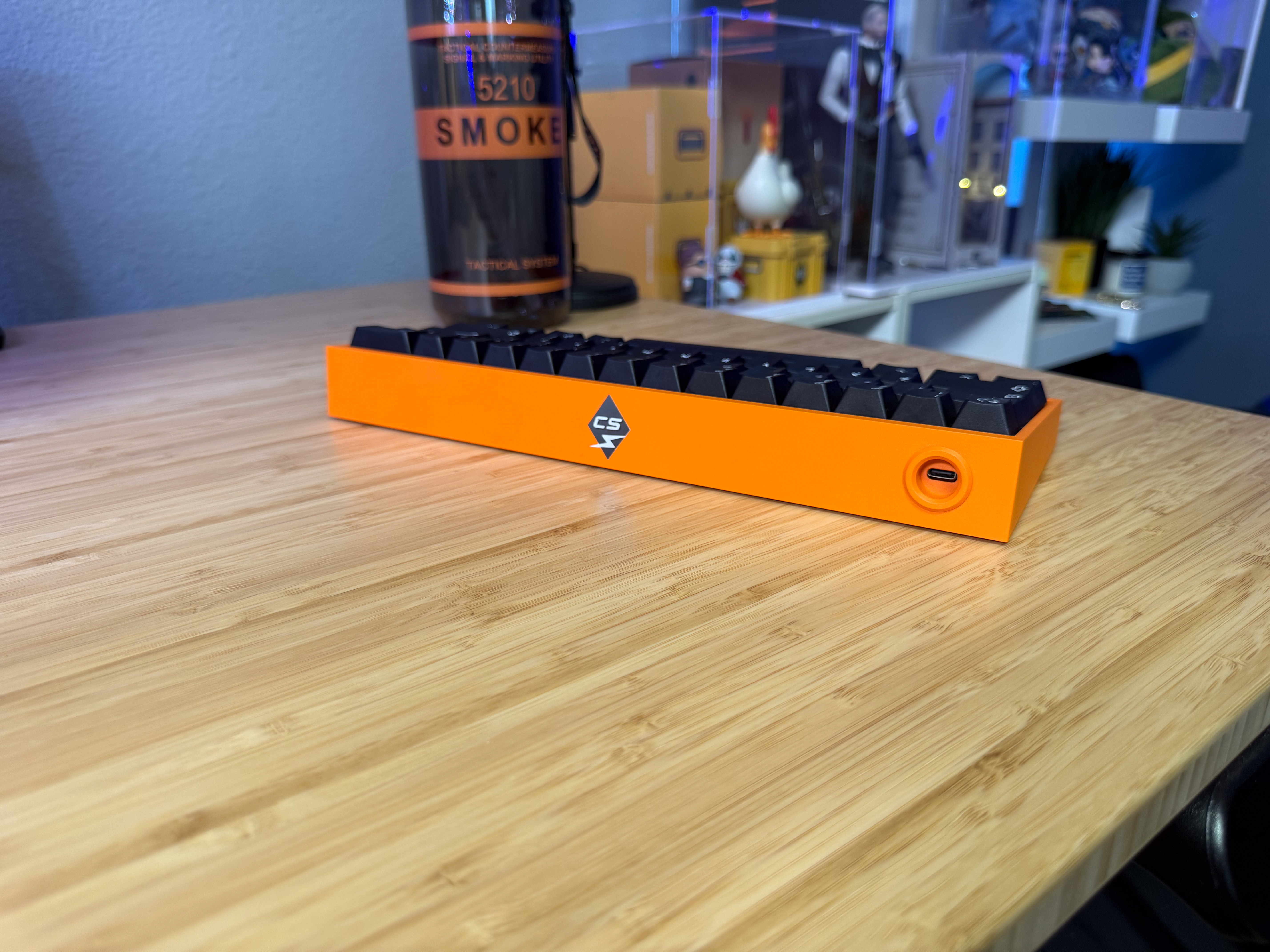

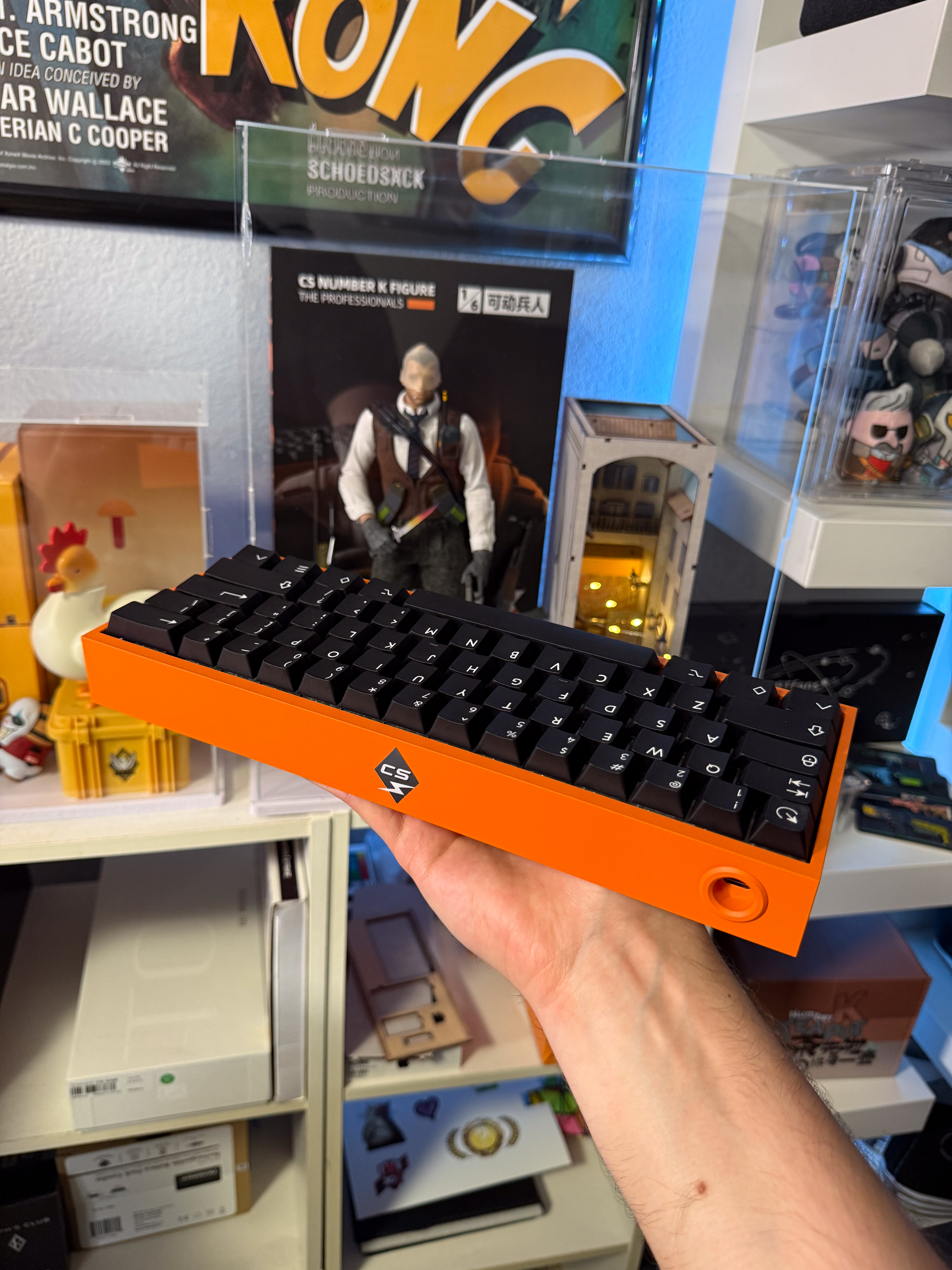

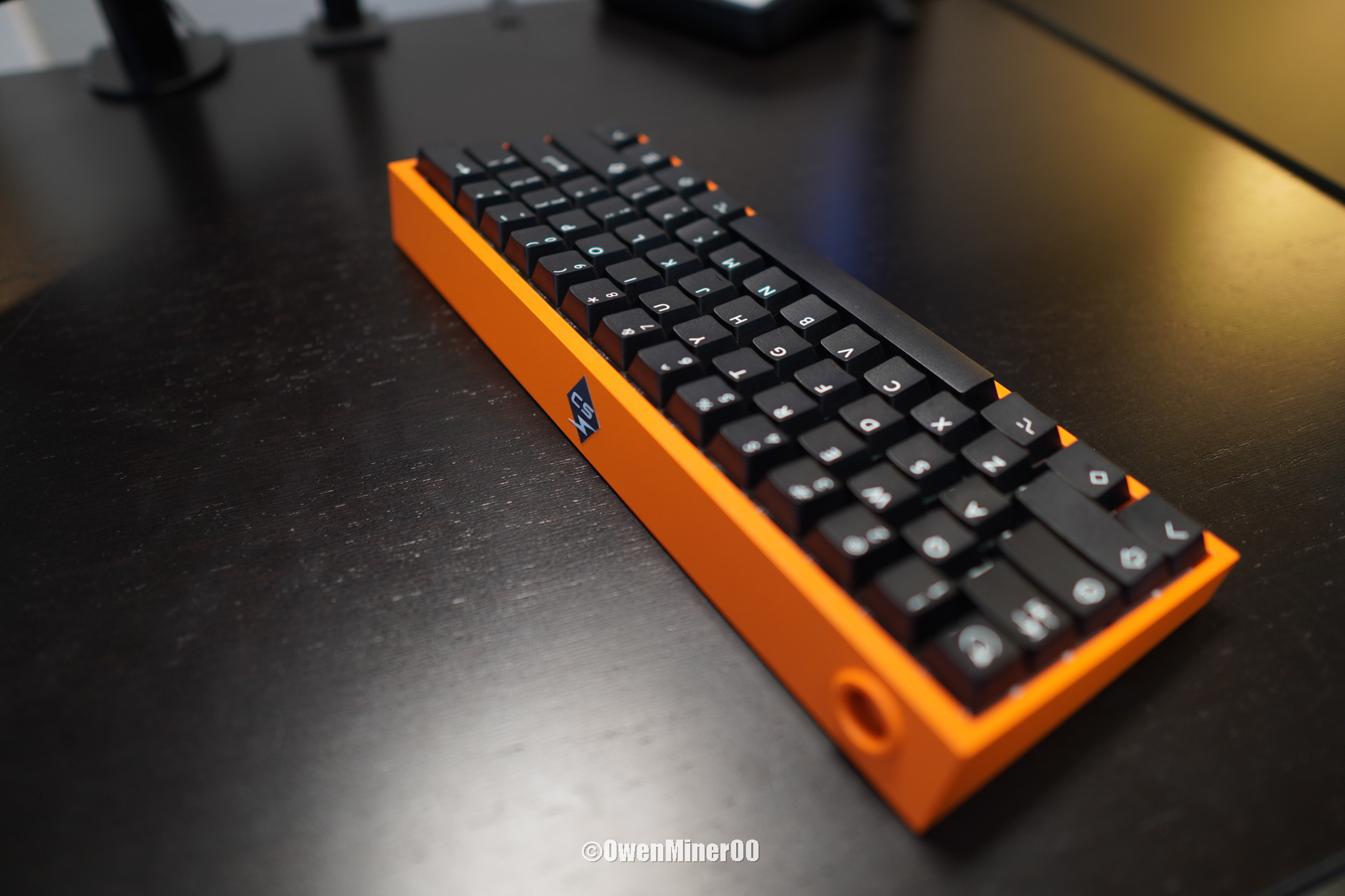

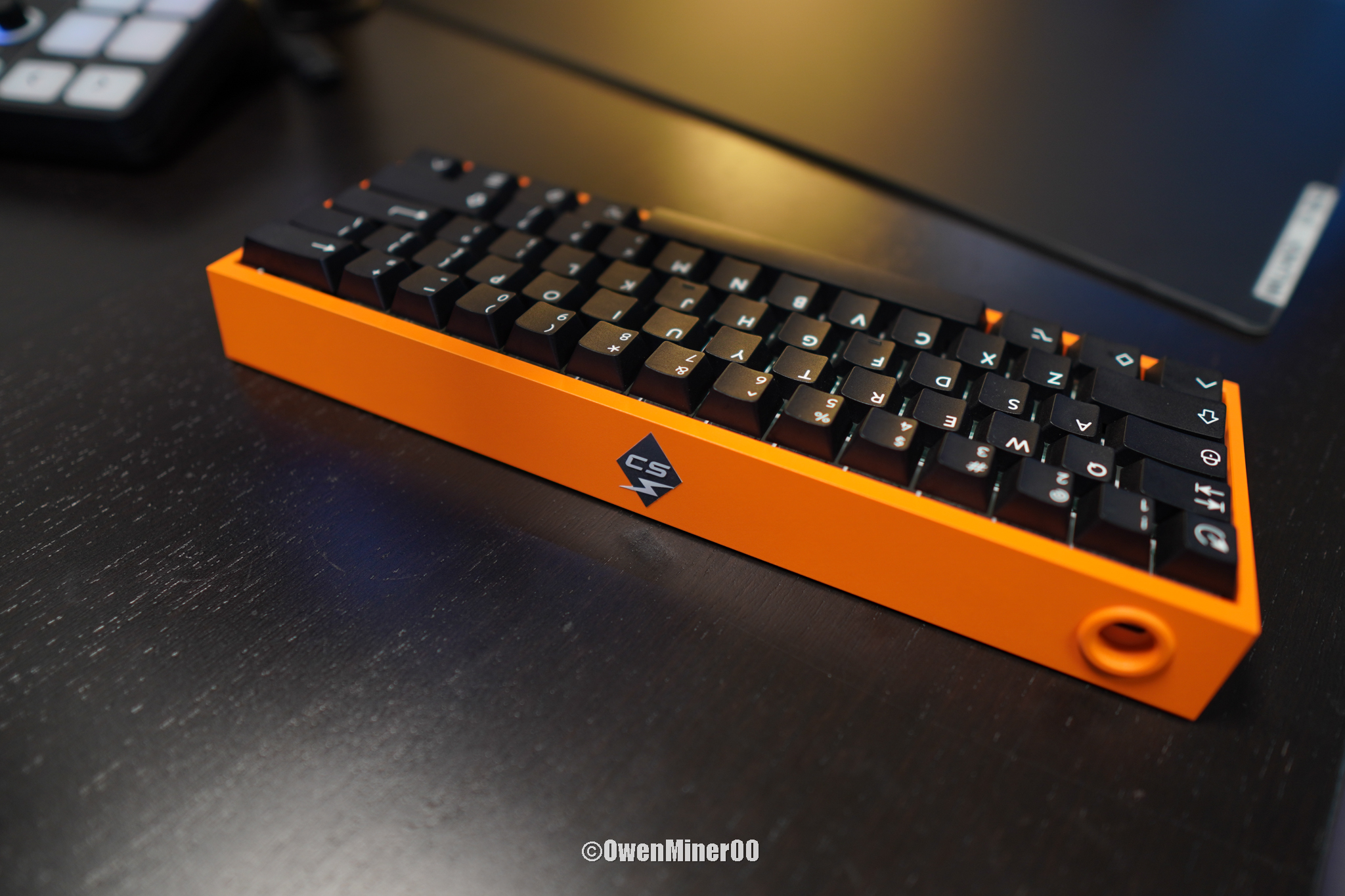

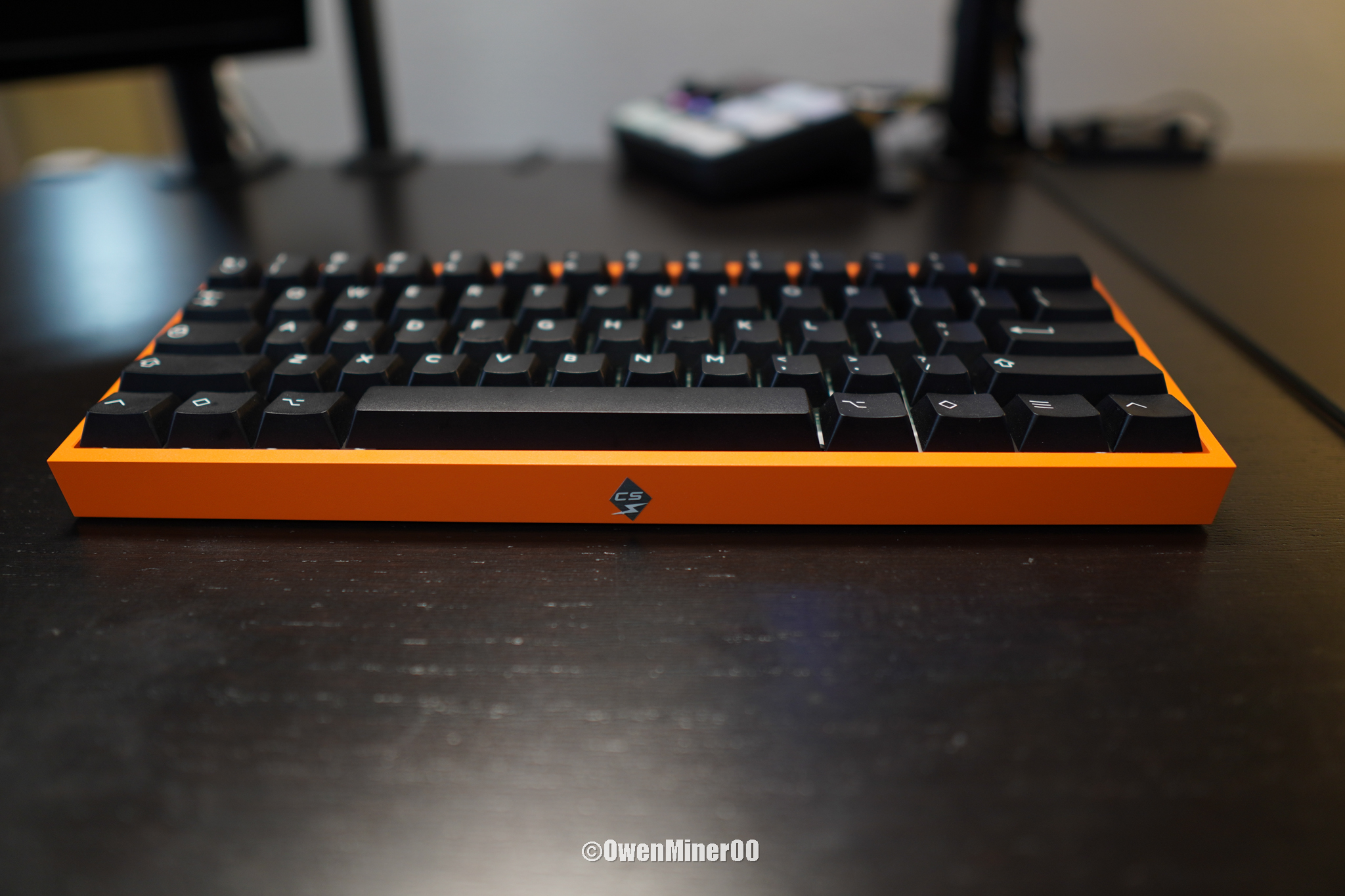

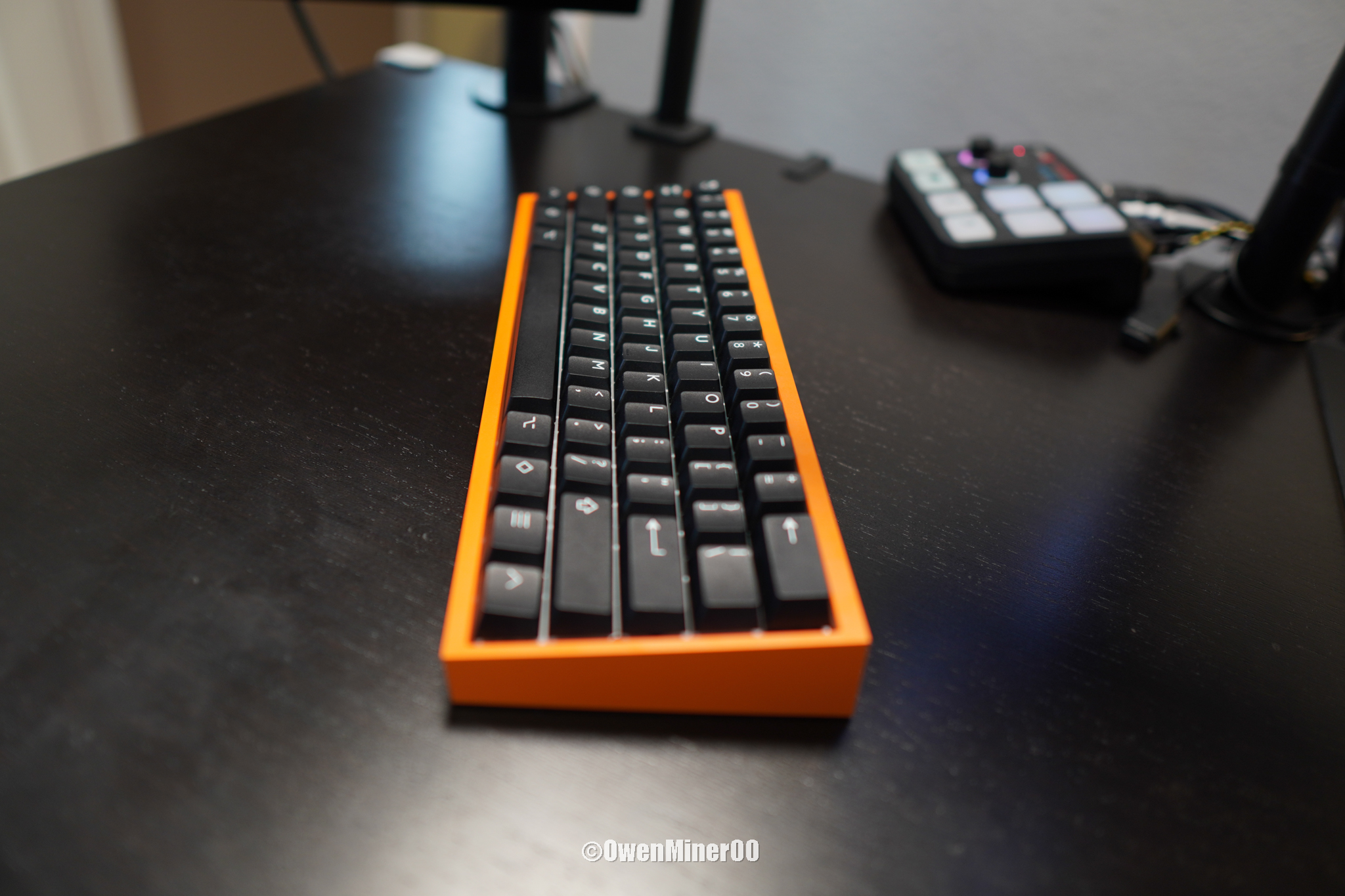

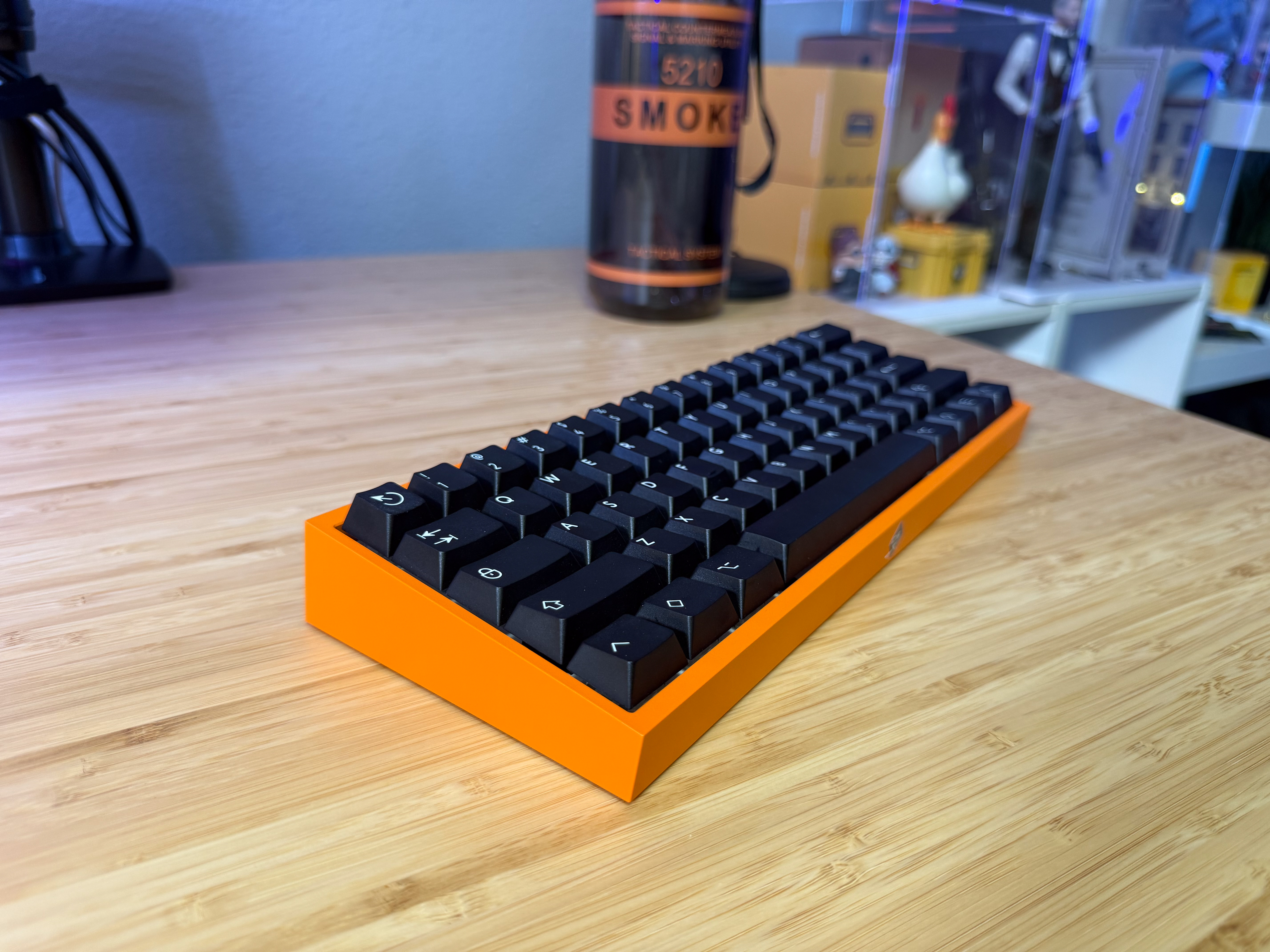

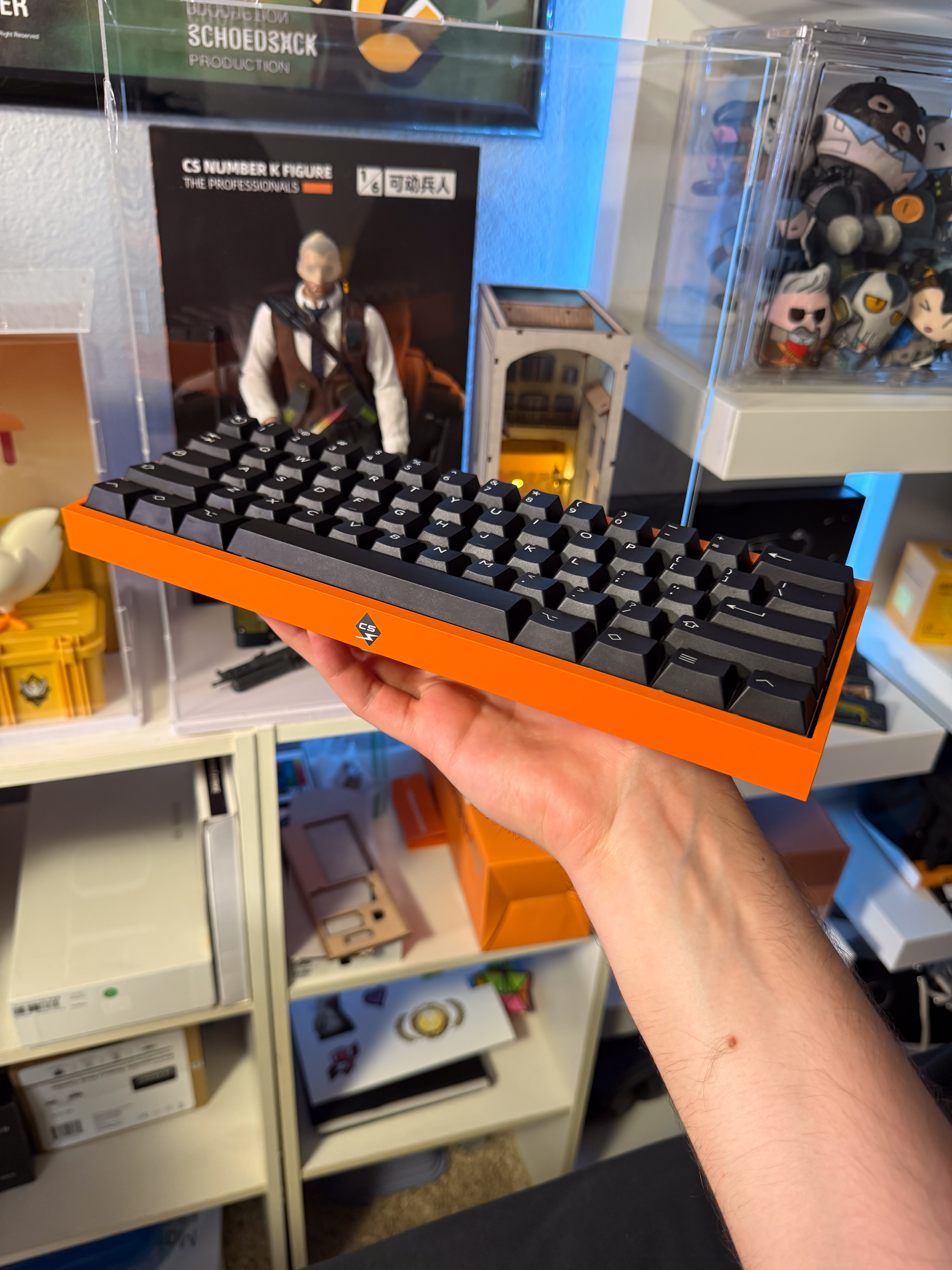

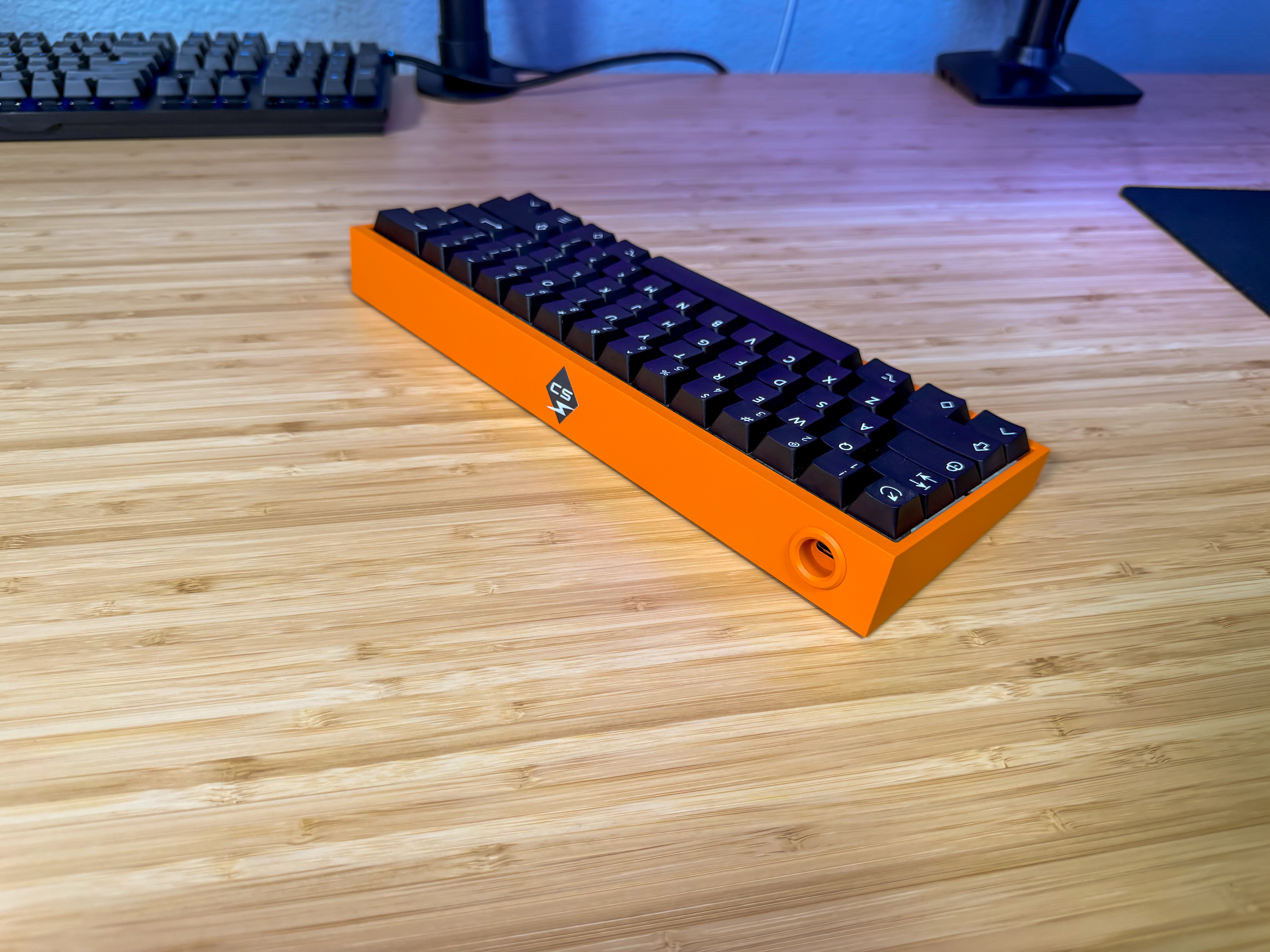

Killowatt wooting back held in front view Killowatt wooting front Killowatt wooting back angled wood table Killowatt wooting right side Killowatt wooting side view Killowatt wooting back angled

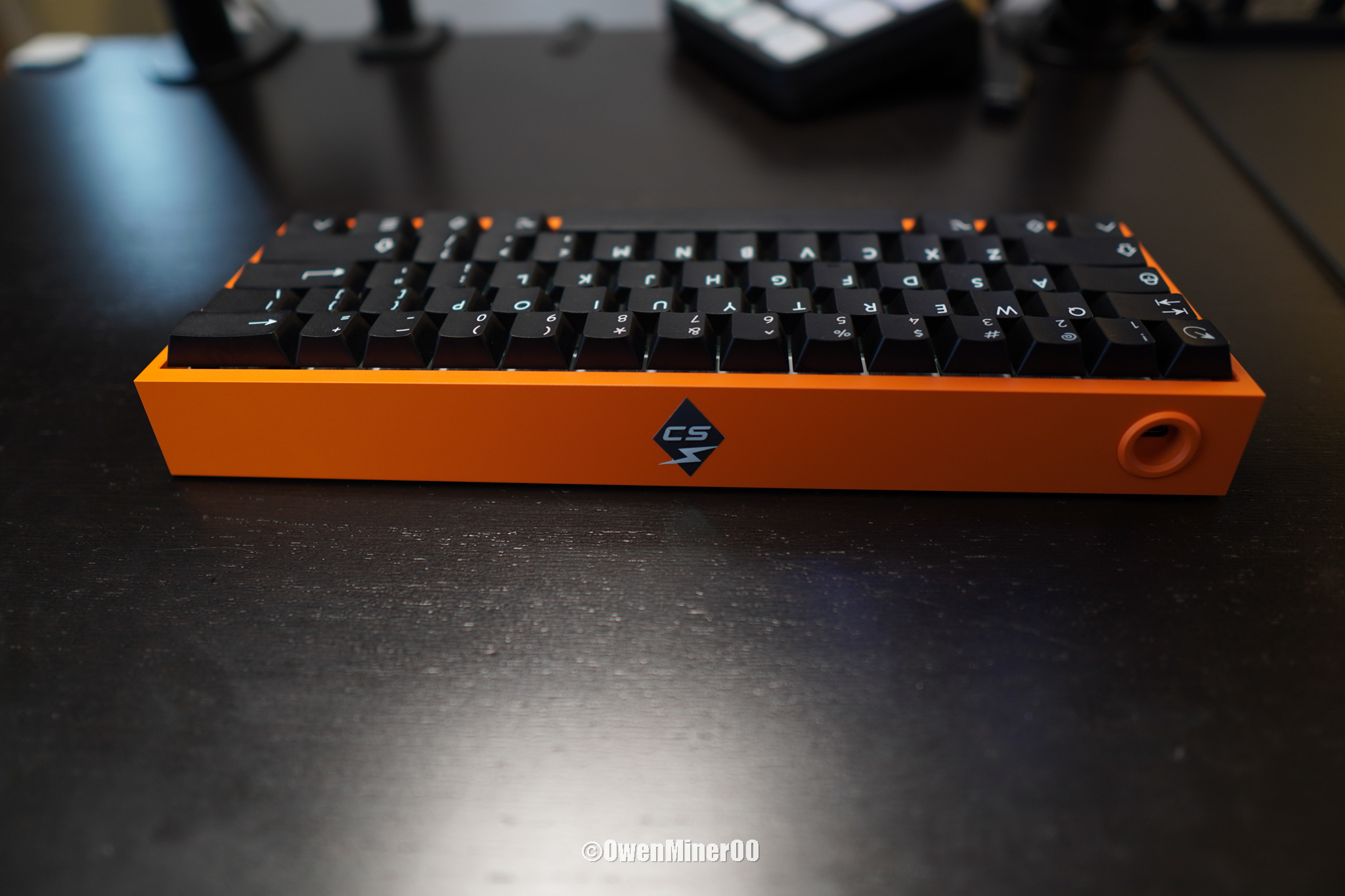

Killowatt wooting back held in back view Killowatt wooting top Killowatt wooting side view Killowatt wooting back Killowatt wooting back view Killowatt wooting back angled

2023 Build Breakdown: Crosshair Alpha

Sound Dampening:

Silicone Mold Kit | $10.99

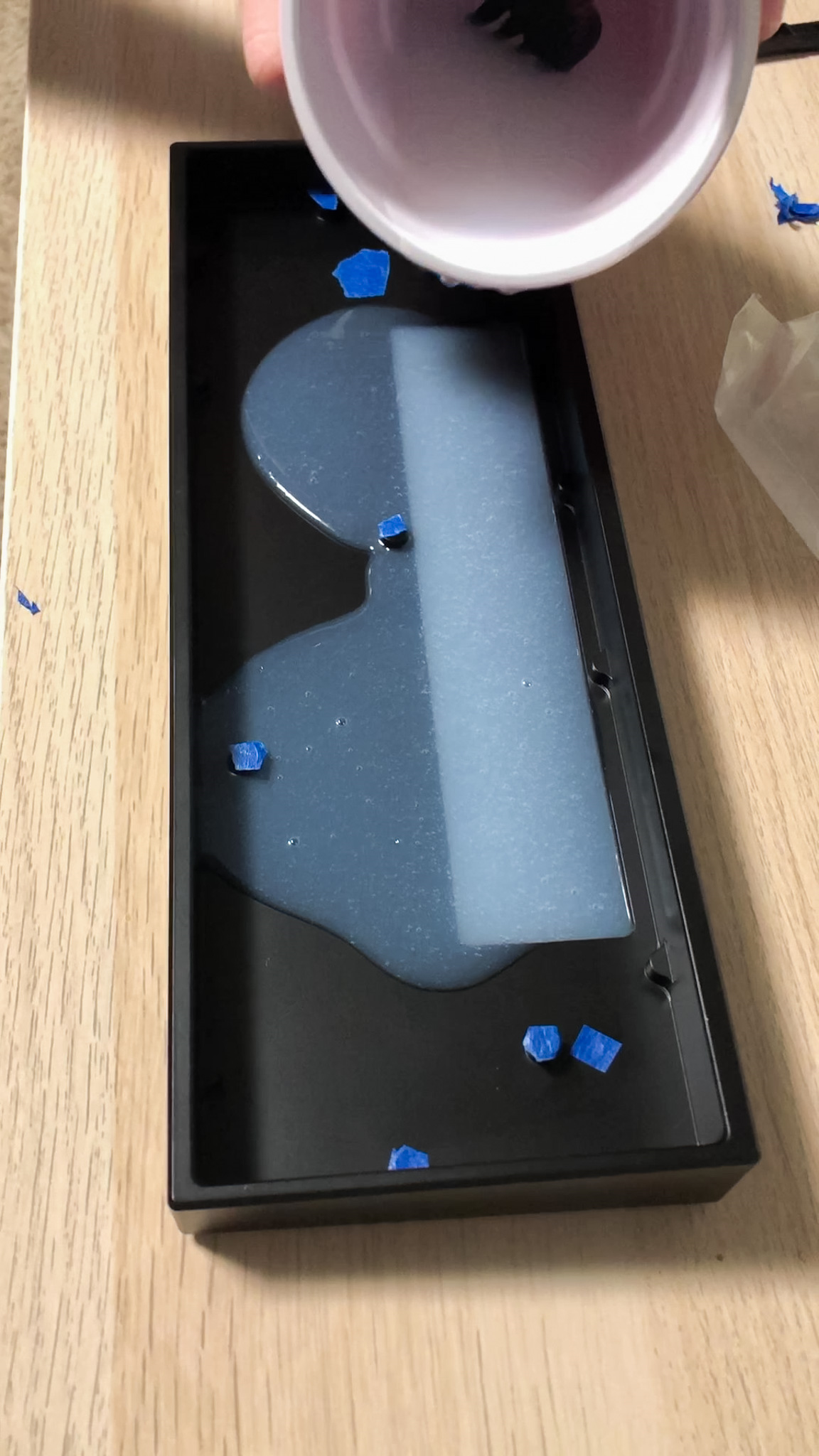

Pouring silicone mold into gh60 case for sound dampening

Started with the Stock Wooting foam in the Aluminum GH60 case. It sounded okay, but there was still a lot of room left in the case, which caused some case ping. Personally had to change it out for something that fills more space in the GH60.

Here is a sound comparison between the Magnetic Jades and Lekker switches:

To start the silicone mold, I covered all holes in the GH60 case with masking tape, including standoffs. Stirred the silicone with a plastic fork, in a solo cup, for a little over 6 minutes. Left it to cure overnight for about 12 hours. I ended up going through with an exacto knife, to remove some extra material around the standoffs. So, it doesn't look as perfect as it was, when it finished curing but it sounds every bit of what I was hoping for.

It is quite hefty now too.

I got the idea for the silicone mold from this video on YouTube: How to Make a Tofu 60 Silicone Dampener | Serendipity

Cable:

CableMod Pro Coiled Keyboard Cable (Midnight Black) | $29.90

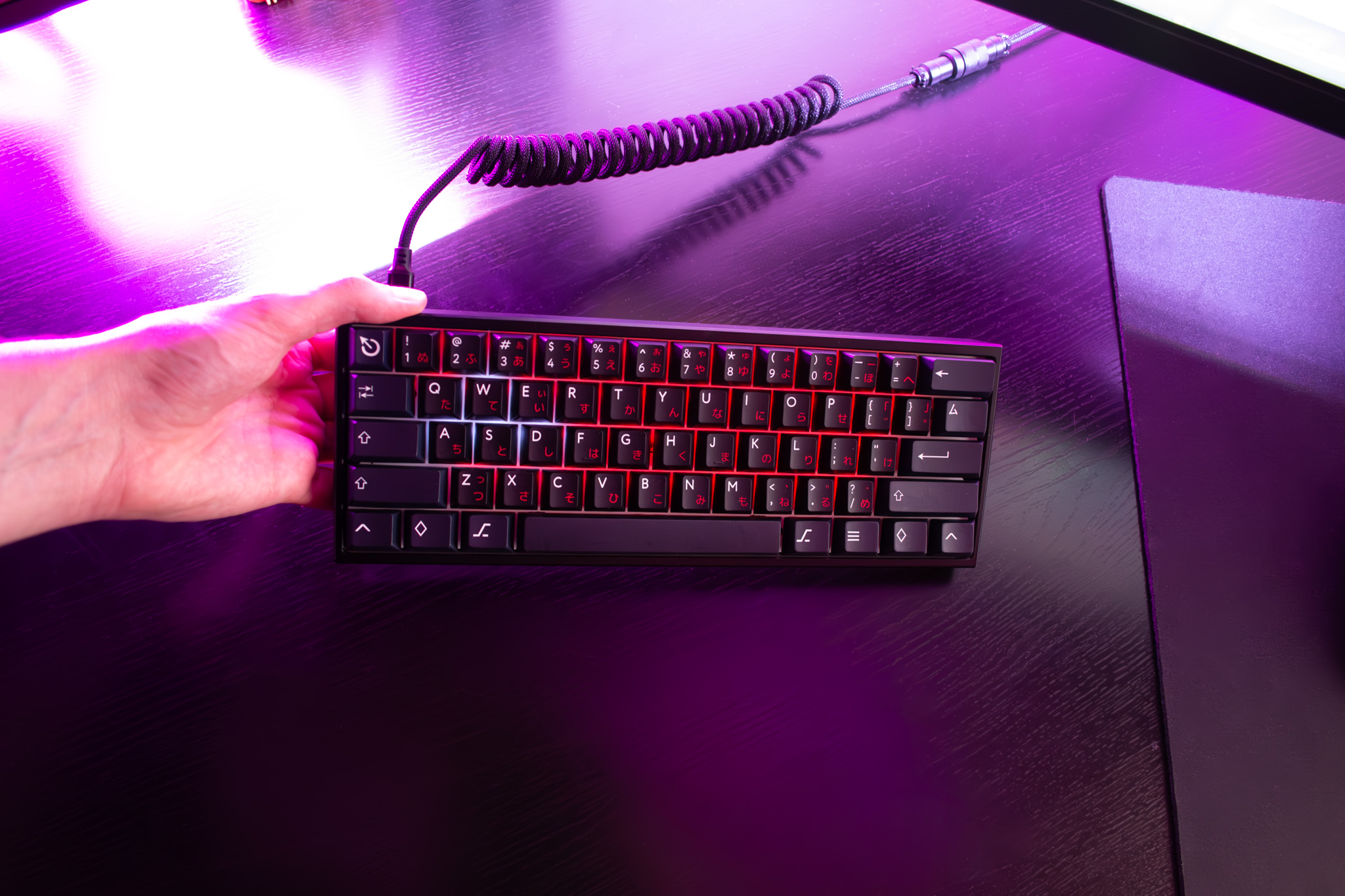

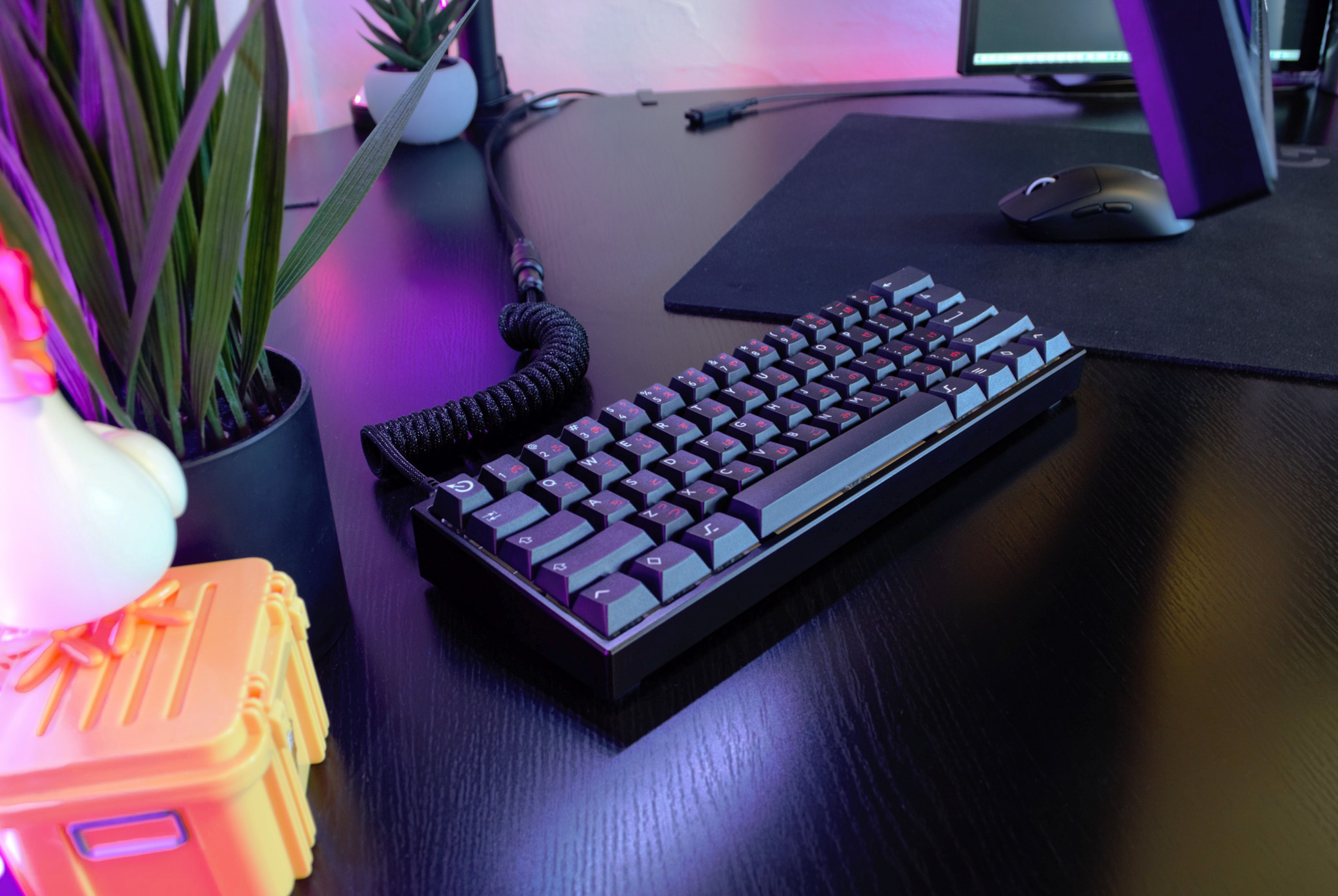

Custom Wooting 60HE with CableMode Cable running RGB at 8%

Tachyon mode seems to be working fine with this cable. I run my keyboard brightness pretty low at 8% though. You could probably run it a lot higher, I just prefer to run it low, so I can see the white pcb plate.

Switches:

Gateron Magnetic Jades | $56.00

I upgraded to the Gateron Magnetic Jade switches. Previously used hand lubed Lekker Switches with 50g springs From Wooting. The actuation force on the Magnetic Jades feel great. They also have a shorter travel distance which is awesome, especially while counter strafing in CS2, leaving less room for error.

Switch Lubing:

$34.99 | when purchased together Wooting Lubricant Set | Wooting Tool Kit

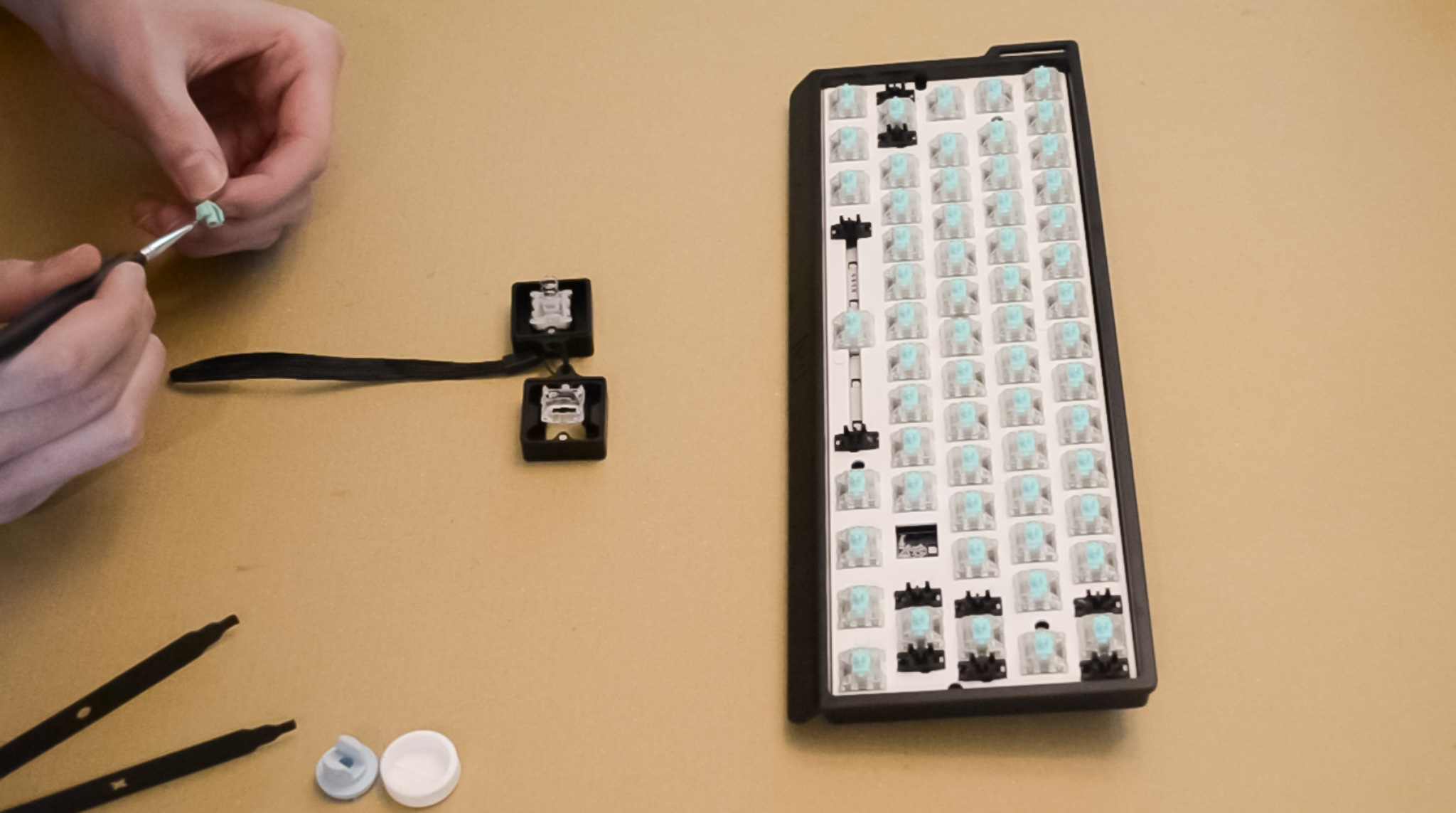

Wooting 60HE Spring Swap/Lubing with Wooting ToolKit and Lube Set

I went with both the Switch Lube Set and Toolkit from Wooting. Both worked great, no complaints.

Not exactly sure how long it took but I have a good estimate... My phone died right after I started, so I pulled out some vinyl records to listen to. Made it through a little over 4-5 albums before I was done, so you can probably estimate the time.

Photo from original Lekker switch lubing. I have since lubed the lekkers once more and the Magnetic Jades!

Case:

GH60 Aluminum Keyboard Case (Black) | $79.00

Really happy with this case for $80 and it adds a lot of weight to the keyboard.

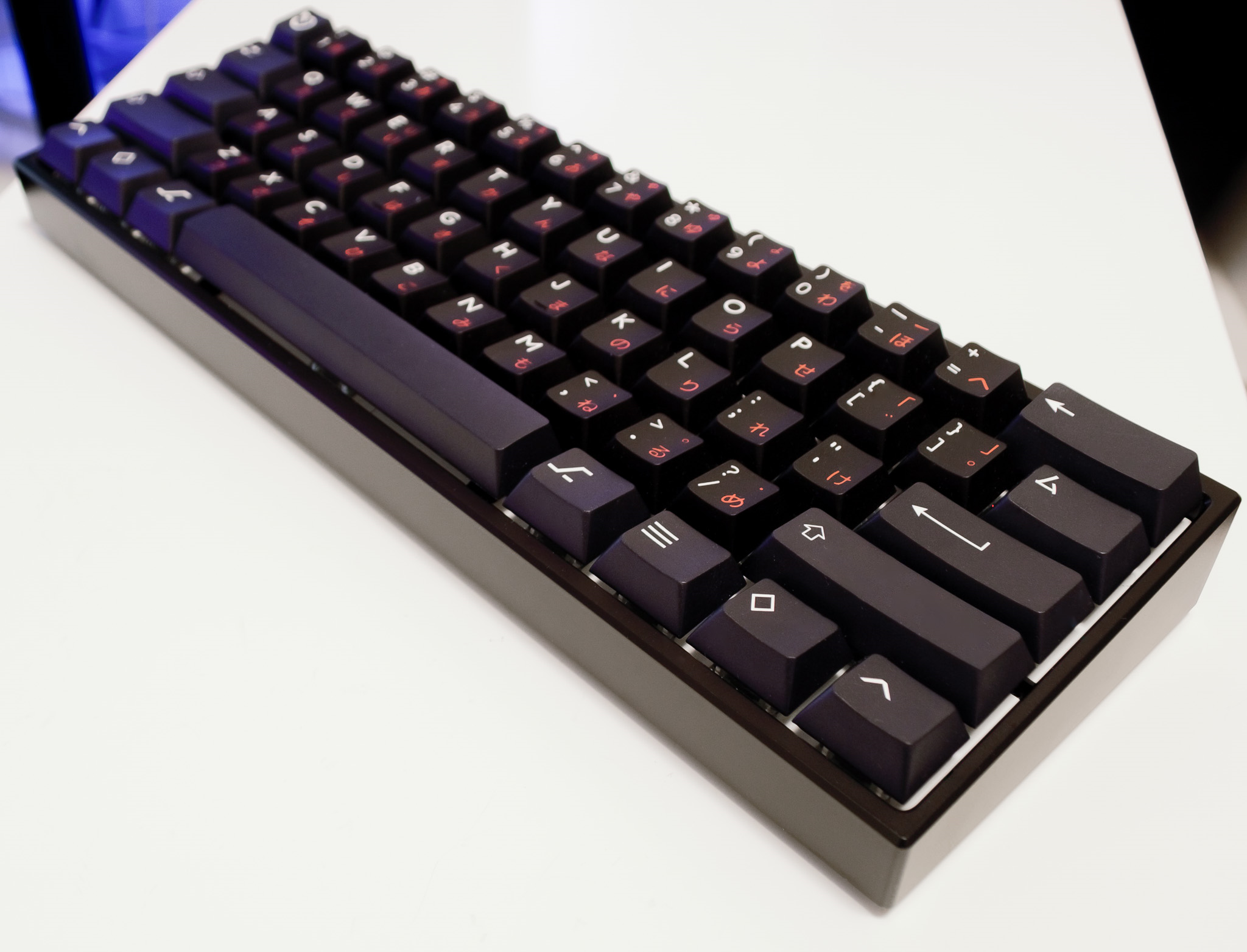

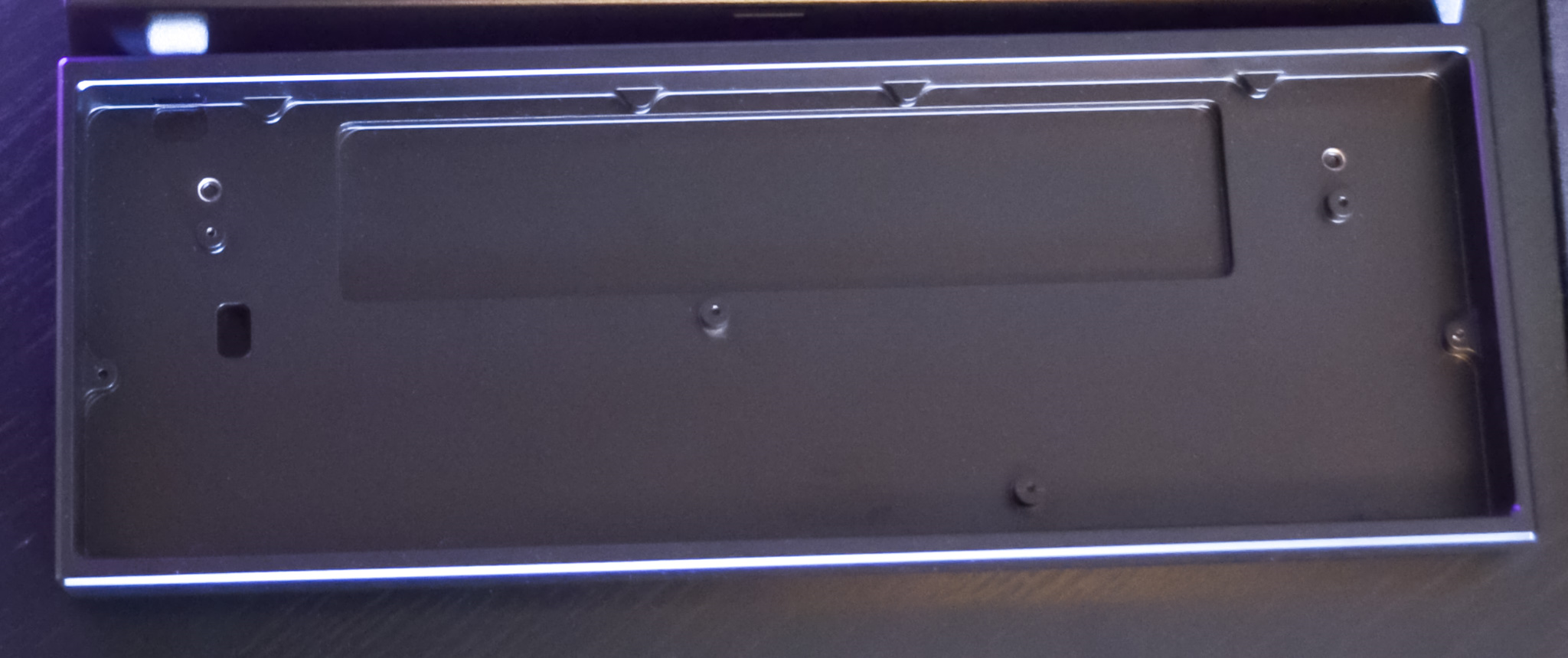

Black Aluminum GH60 Case

If you plan on burger mounting with this case, get something like these...

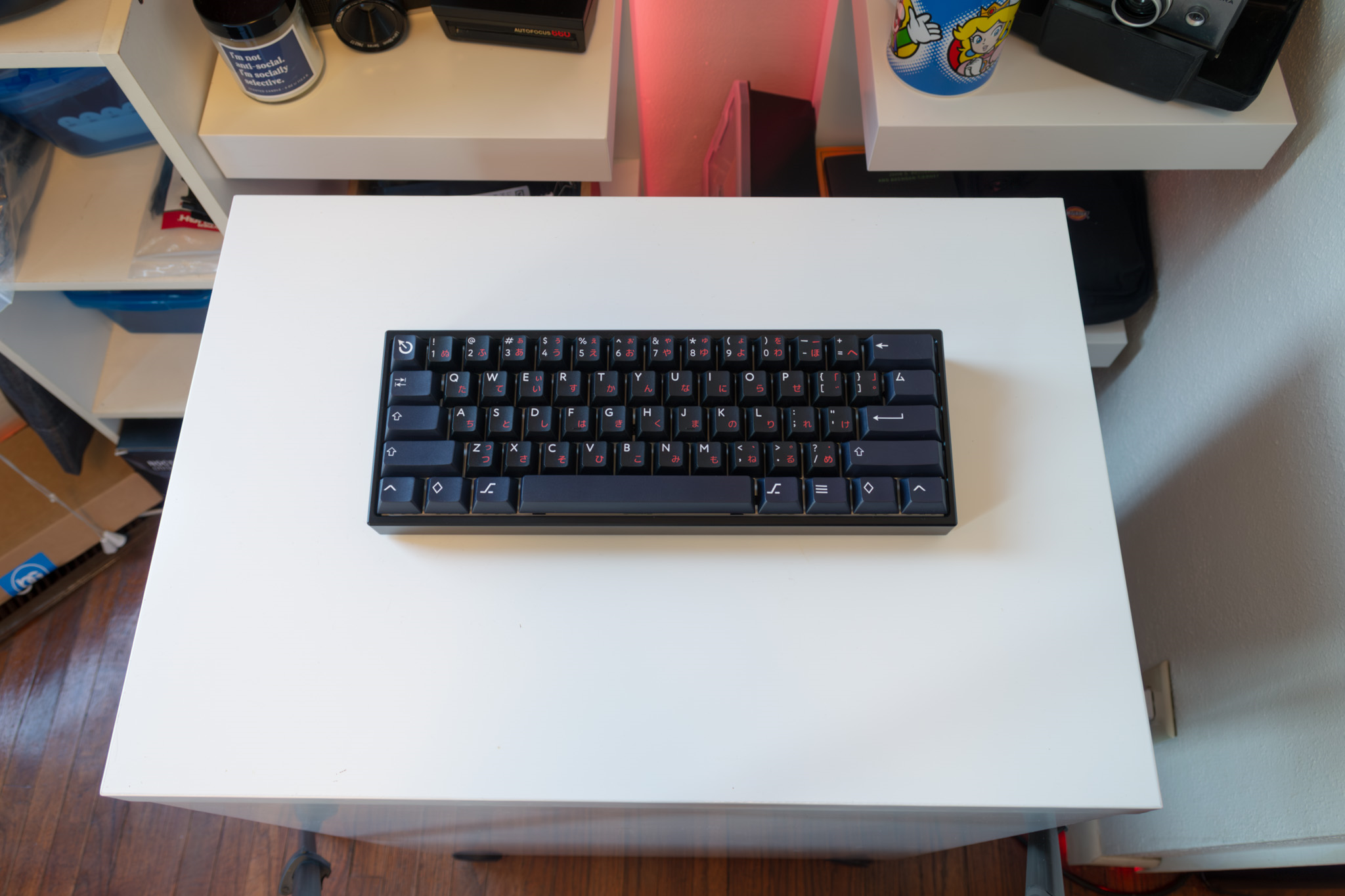

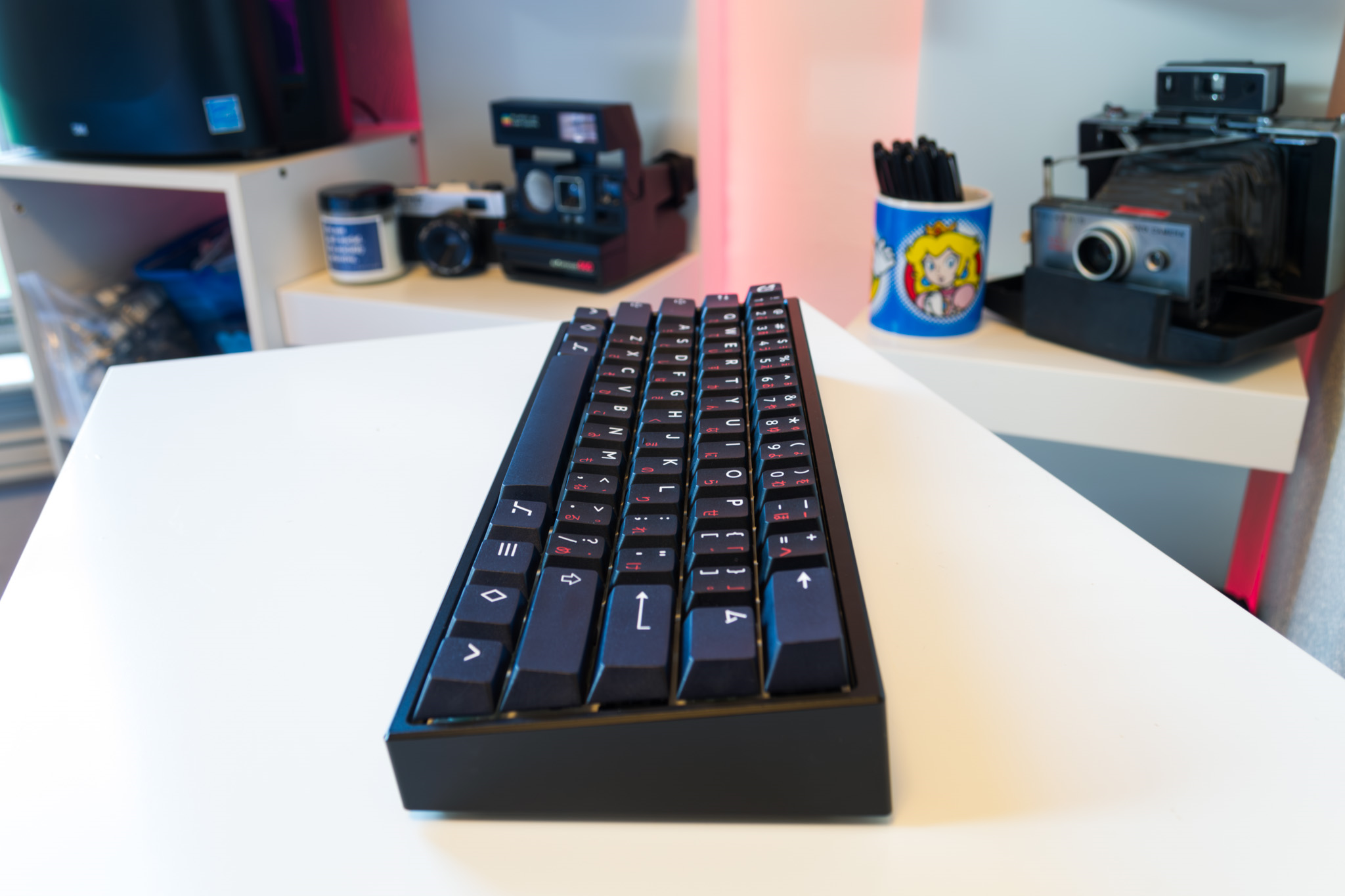

Custom Wooting 60HE with white background side view

Gummy O-Ring:

O-Ring | $7.00

White 185mm OD x 3.5mm CS Silicone 50A Duro - Suggested By BadSeed Tech

Keycaps:

PBTfans WOB | $84.00

Currently using PBTFans WOB Simple Base with the Crosshair Alpha Addon kit

Love this set, the extra red accent color really makes these caps stand out

Current photos on this site show YDMK Katakana Key caps on the edges which are a slight different shade of black compaired to the PBTFans keycaps. See the Sound Test for and updated look at the keyboard!

Wooting 60HE With YMDK and Crosshair keycaps

For those interested in my Wootility keyboard profile code: d1dcc59e6c1e7af5572589cbc41d6b3be600

2023 Build Photo Gallery

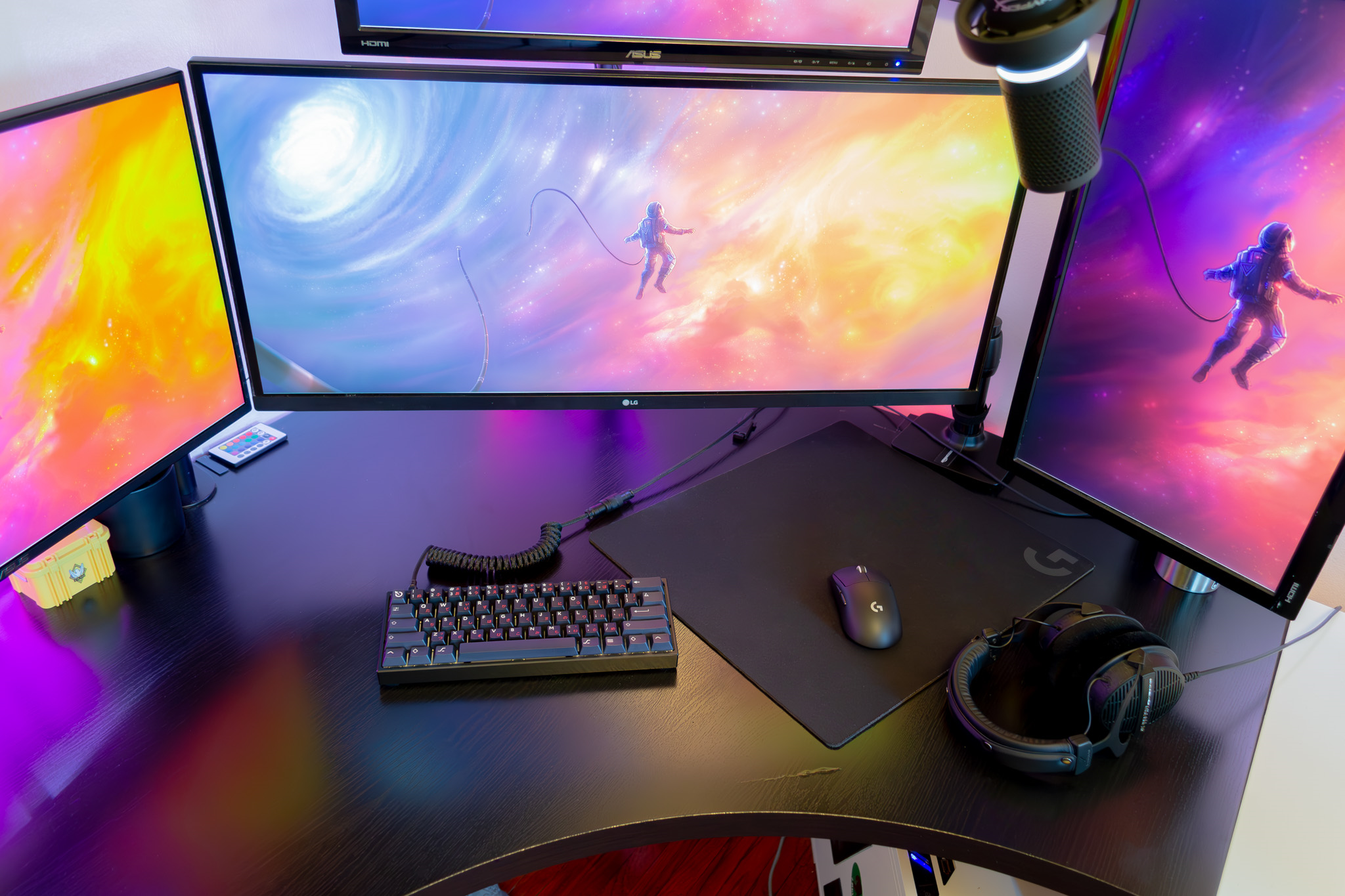

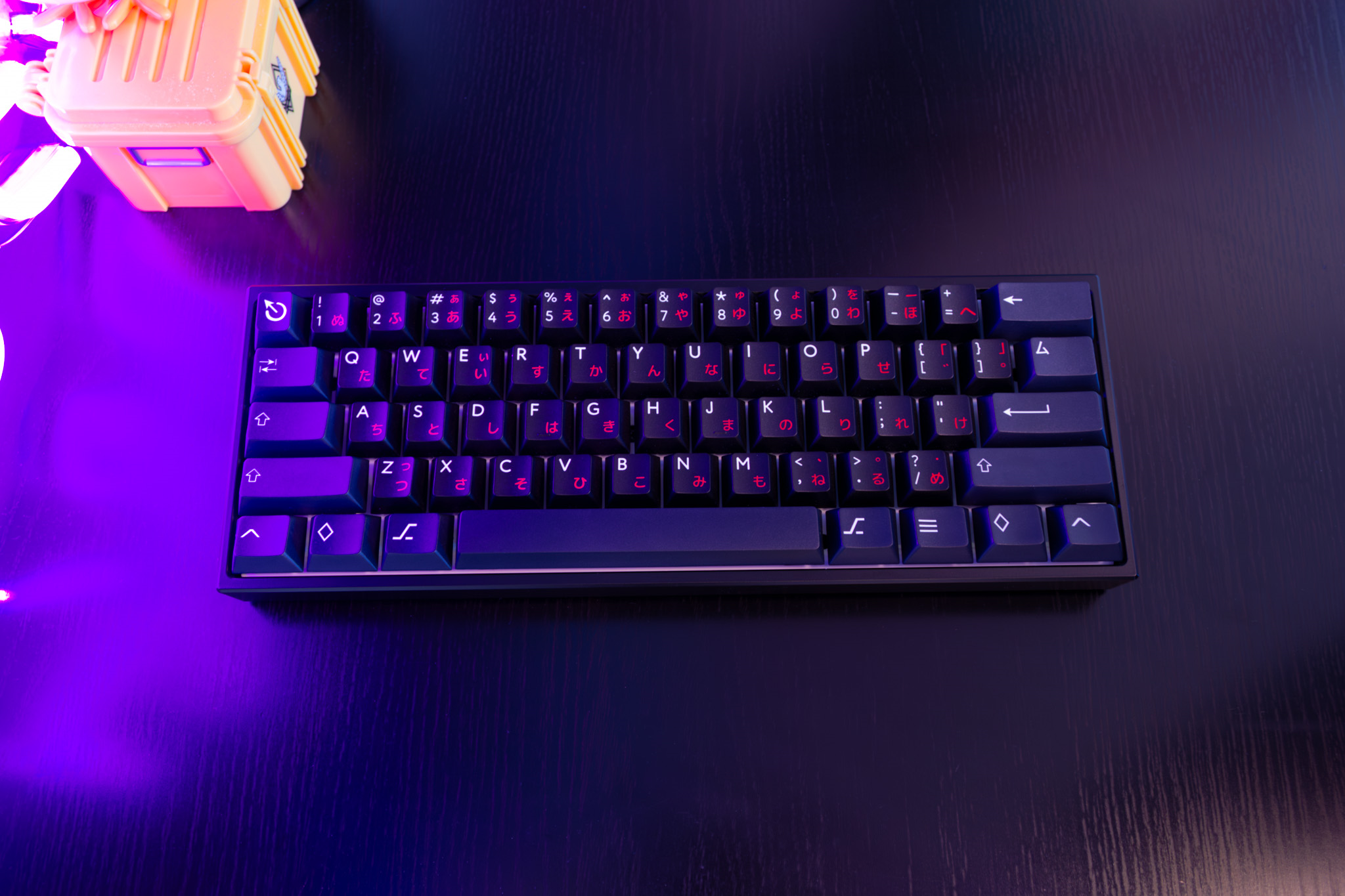

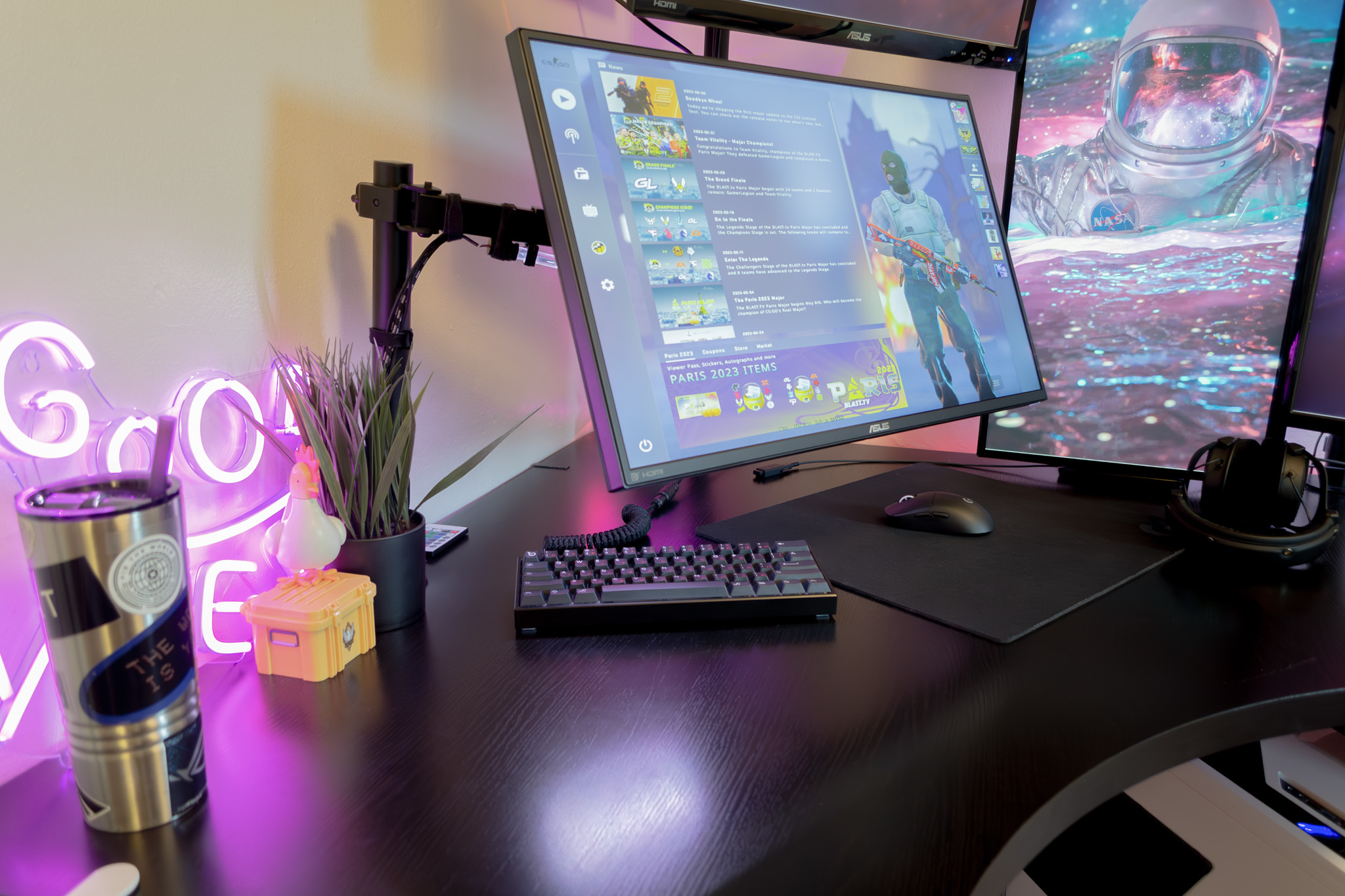

Custom Wooting 60HE With CSGO Chicken Case as decor view 1 Black Aluminum GH60 Case side Custom Wooting 60HE Top View Custom Wooting 60he with white background top view Custom Wooting 60HE Desk Setup for Counter Strike

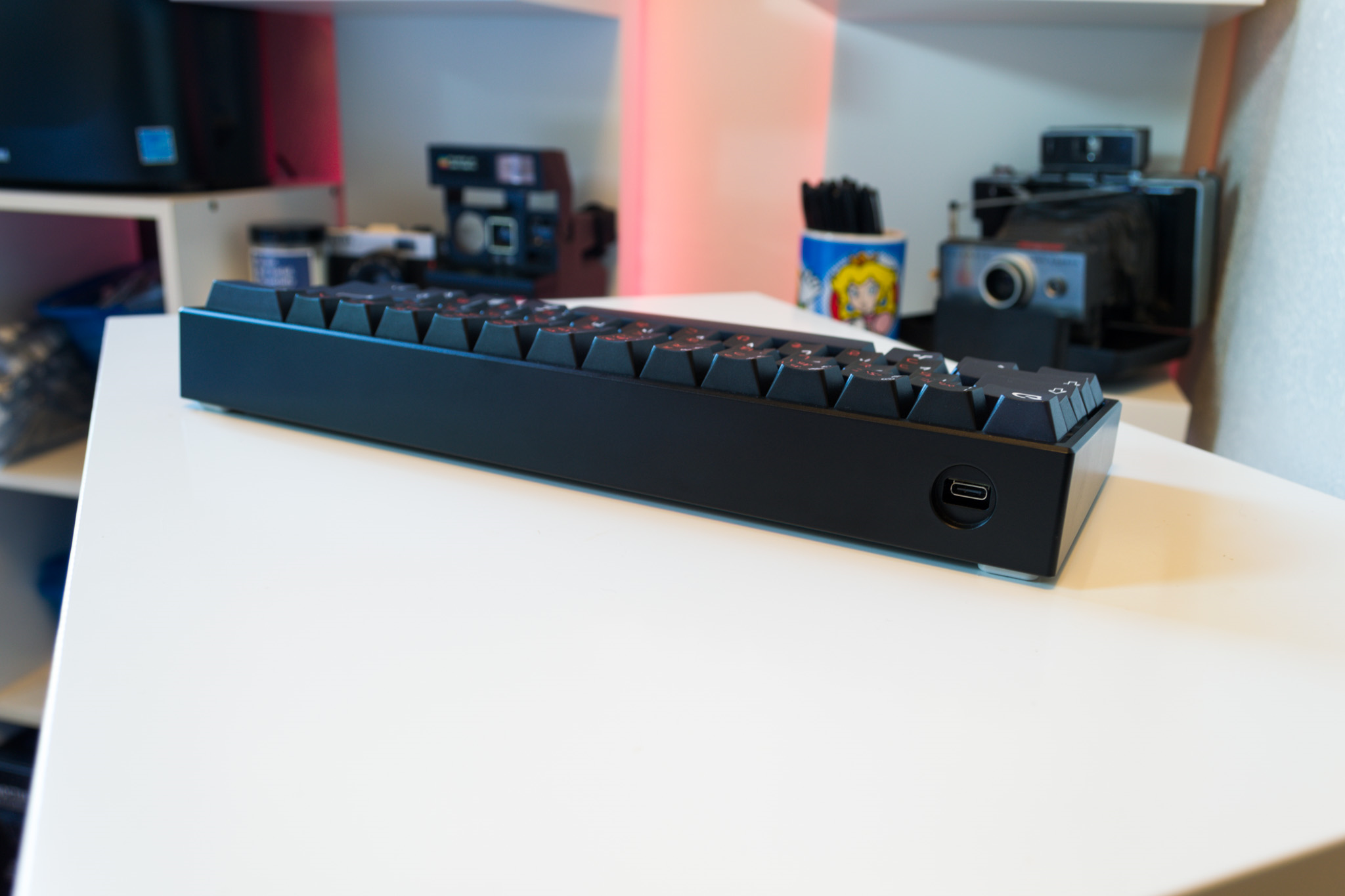

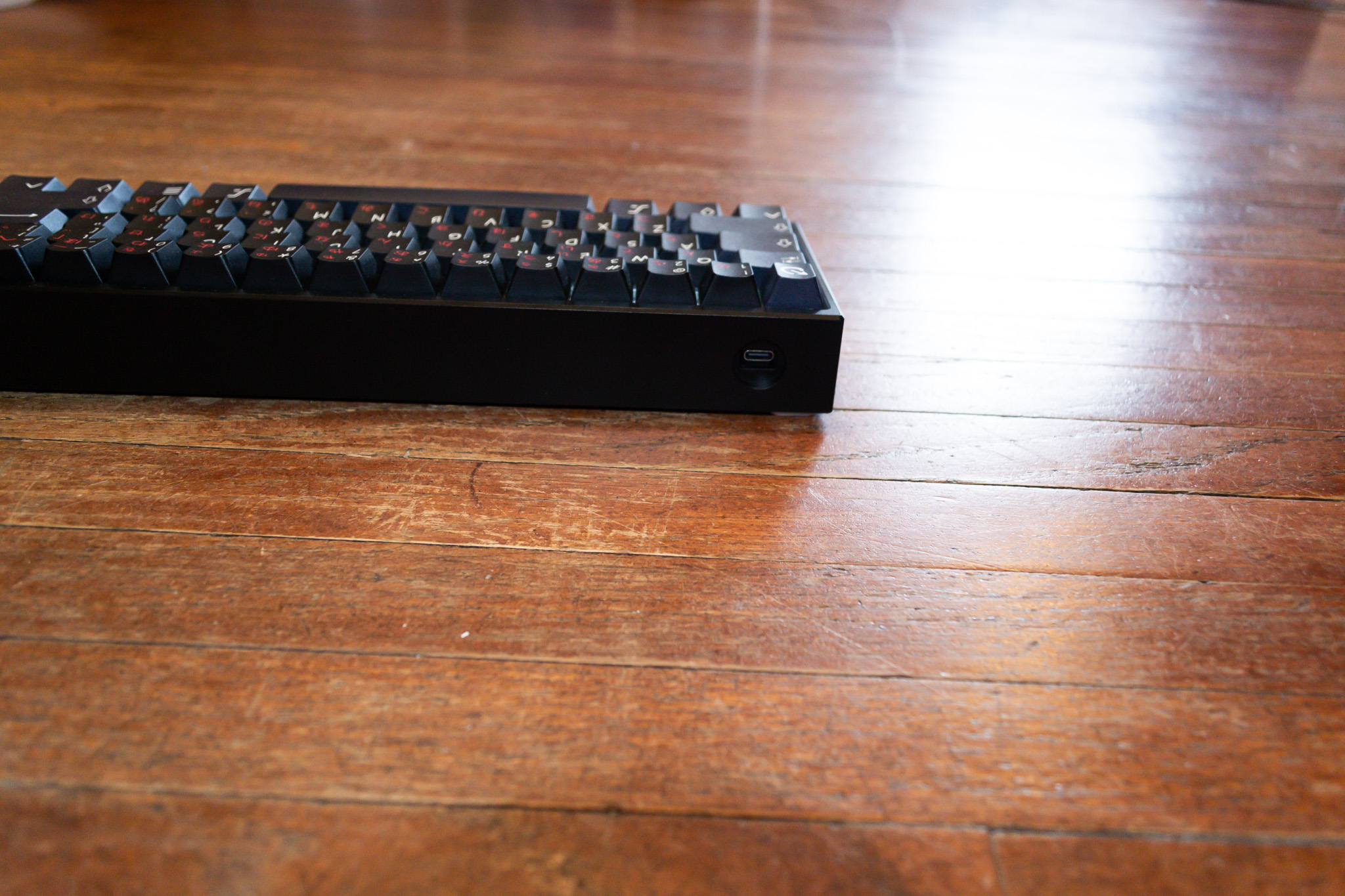

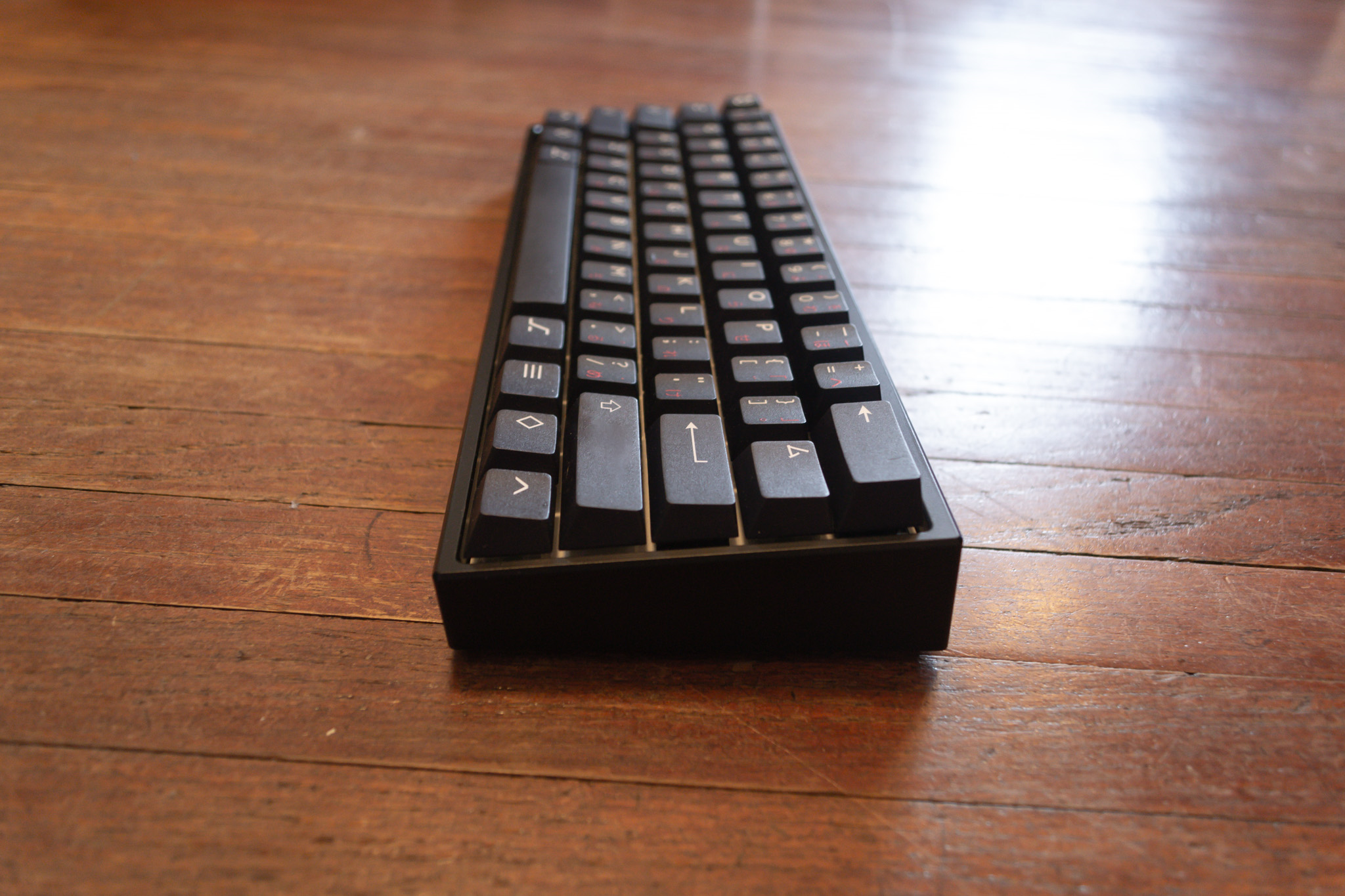

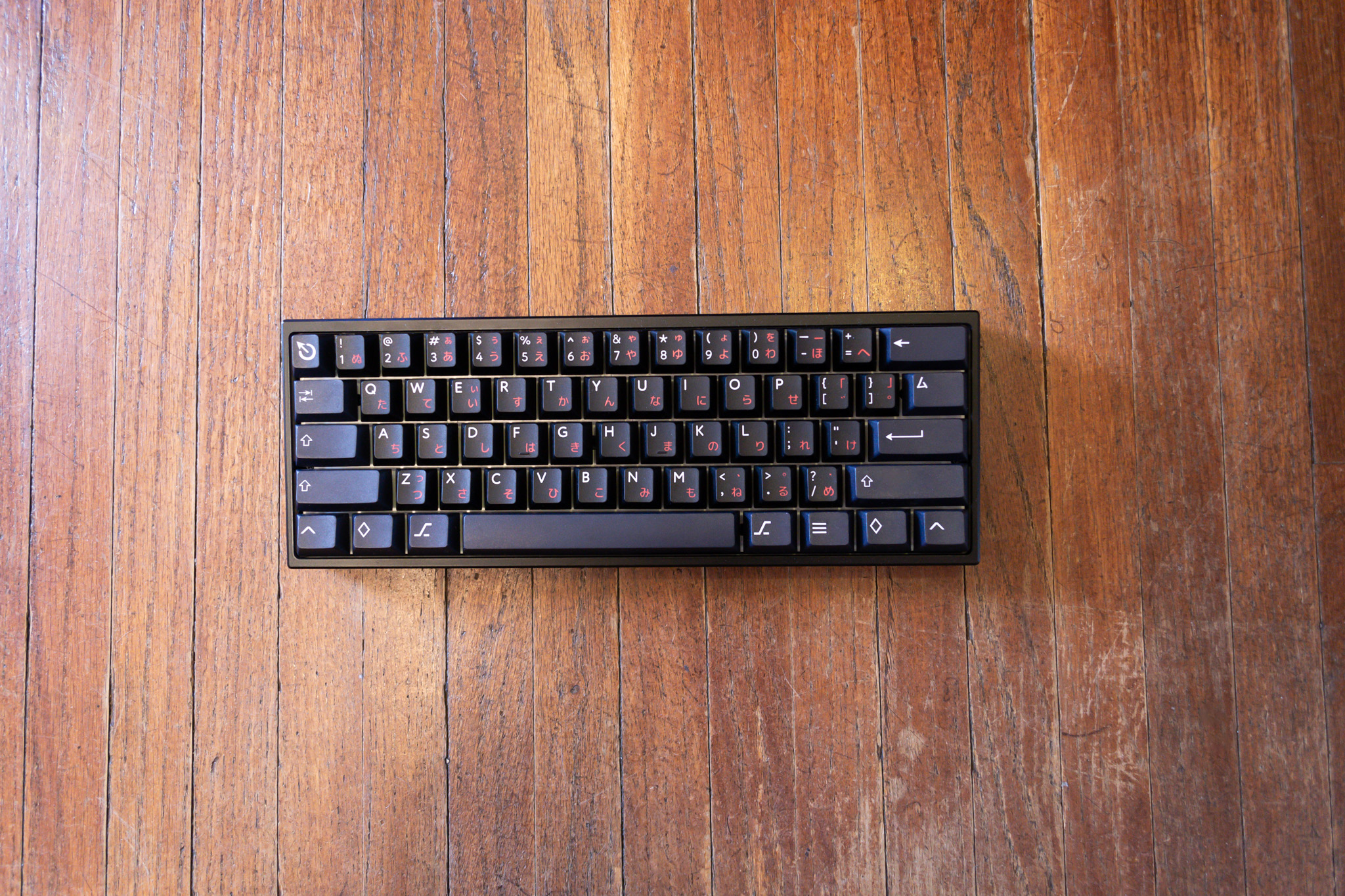

Custom Wooting 60HE on Wood Floor top view Custom Wooting 60HE With CSGO Chicken Case as background decor view 2 Custom Wooting 60HE back view on Wood Floor Custom Wooting 60HE back view with white background Custom Wooting 60HE Workstation

Alternate Part Ideas:

Still have some of the cases and keycaps I considered for my build saved to my bookmarks bar. So I figured I could put them below, just in case anyone needs some more inspiration for their build!

Note: I do not own any of these parts, so I will not be able to comment on their quality. Just thought someone might enjoy extra part ideas, especially with how often some parts go out of stock

Cases:

(New) Tofu 60 Redux | $60.00 (+$25.00 delivery fee)
MEKANISK Klippe T | $129.00 (+$40 shipping)
BGKYPRO BG60 Aluminum CNC Keyboard Shell | $75.05
KBDfans Tofu60 Discontinued (ebay?)
Compatible Case List From Wooting
Wooting Alumaze60| $119.99

Keycaps:

PBTFans WOB Simple Base | $75.00
Tripleshot Black Japanese Keycaps | $28.49
Double Shot PBT Keycap Custom WOB | $27.99
DROP SKYLIGHT SERIES KEYCAP SET | $45
Side Printed Keycap Set Gradient Gray | $32.99
Japanese Gray Red Keycaps | $32.99
Wooting also has a set of Keycaps | $49.99

Videos I Found Useful Along The Way:

It's Almost Cheating. — Wooting 60HE Keyboard | Optimum Tech (Important Coiled Cable info from Wooting in comments)
Wooting 60HE After 5 Months (still cheating) | Optimum Tech
Ultimate Wooting 60HE Mod Guide | BadSeed Tech ( helped a lot for lubing, burger mount, etc. )
60HE + Burger Mount Mod: How does it FEEL & SOUND? | Wooting
60HE + Silicone: Does it improve the sound? | Wooting
How to Make a Tofu 60 Silicone Dampener | Mechanical Keyboards | Serendipity
TenZ Opinion On His Wooting 60HE Keyboard - (Clip from Tenz that originally inspired the research into my build)

Thanks to GewaltofRiwia, Ostrich, Over Heaven and Pink! from the Wooting Discord, for answering questions while I worked on this keyboard and/or build breakdown

If there is anything you feel I should add, update or change about this page, feel free to message me on any of the social media platforms listed above! I’d love to hear it!
